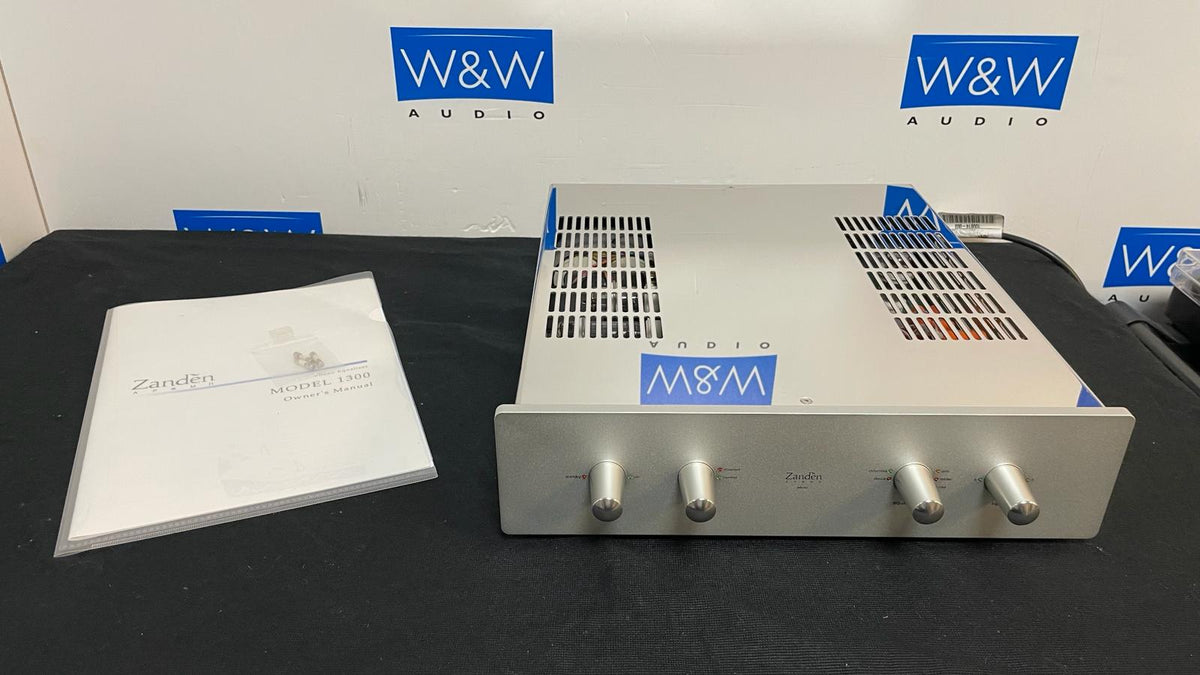

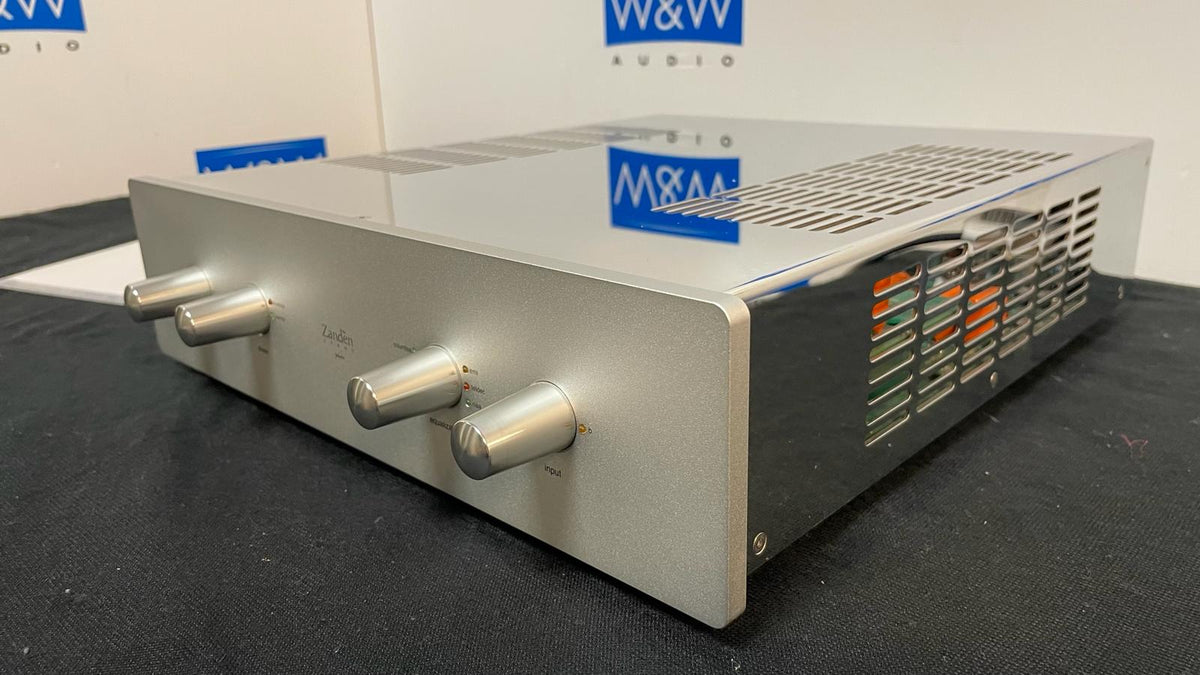

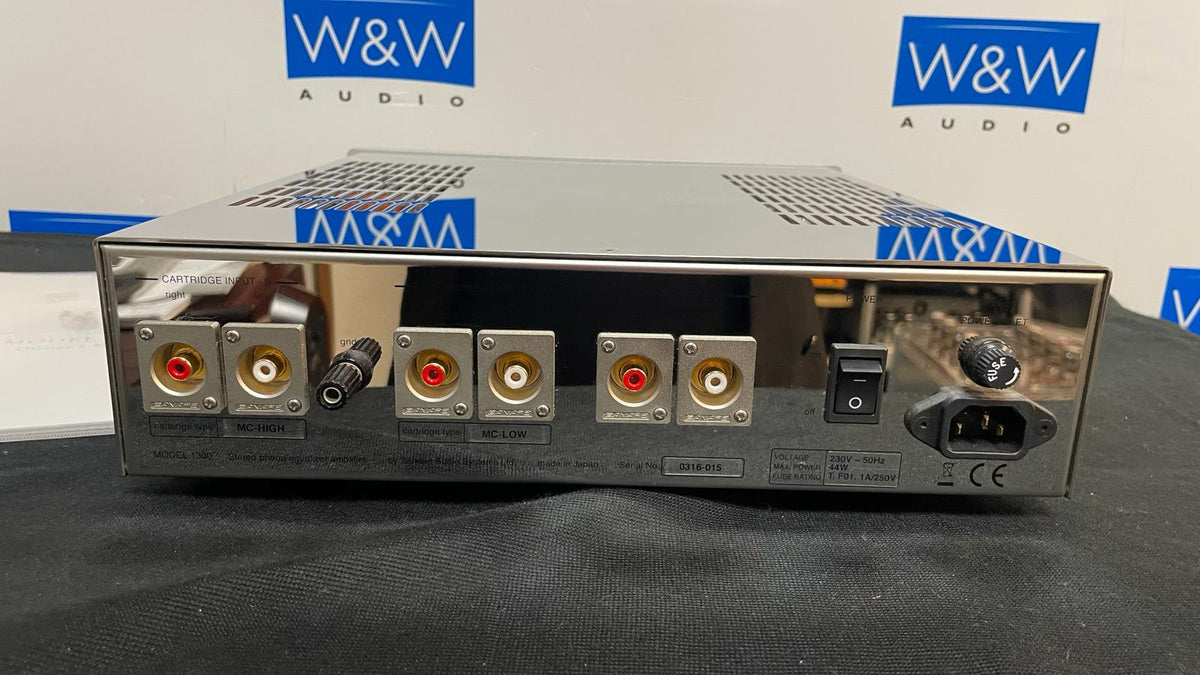

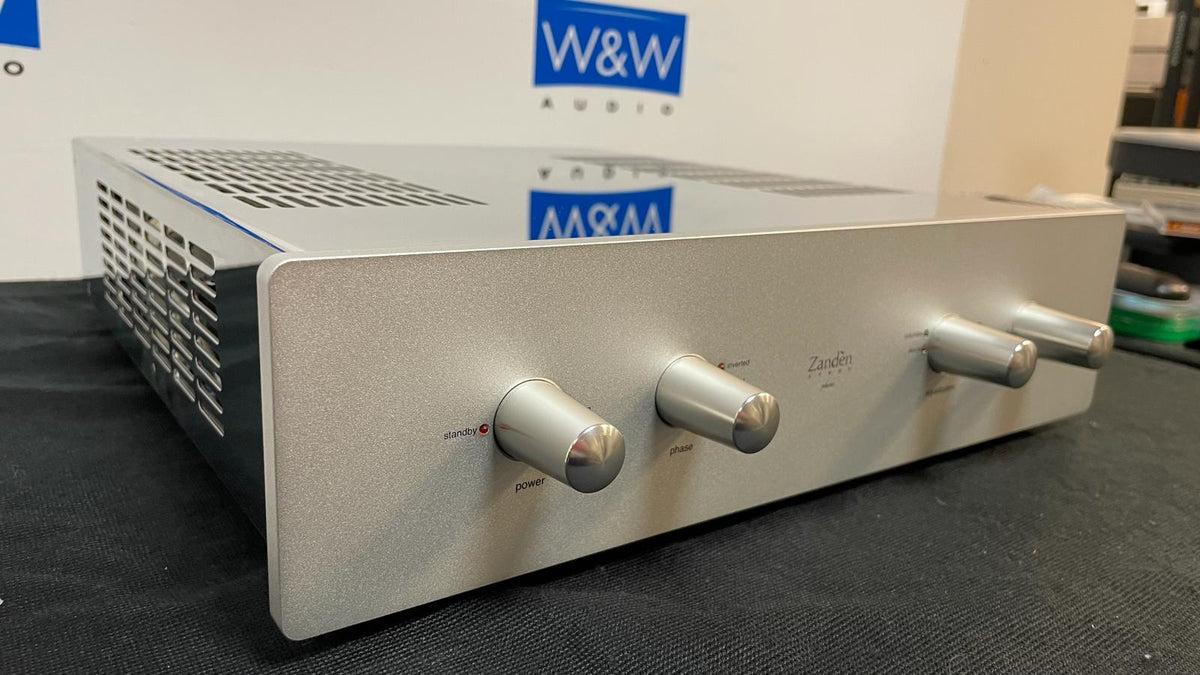

Zanden Model 1300

- (5) selectable EQ curves (RIAA, TELDEC, EMI, COLUMBIA, DECCA) - LCR type equalization circuit - absolute polarity switch - 6922 / 7308 type tubes for amplification - unique circuitry - fixed bias - tube rectification - no negative feedback - (2) Jensen step up transformers to accommodate a wide range of cartridges - 3 layers of shielding on critical parts

EQ curve positions RIAA, TELDEC, EMI, COLUMBIA, DECCA Inputs Low impedance MC cartridge x1 High impedance MC cartridge x1 Input impedance low: 36 ohm hi: 470 ohm Output impedance 3kOhm Gain Low MC: 68dB (1kHz, RIAA) High MC: 54dB (1kHz, RIAA) Frequency deflection 0.5dB (20Hz - 20kHz) maximum Total harmonic distortion 0.1% @ 300mv RMS output, 1kHz Signal to Noise -70dB (IHF-A, 5.0mv RMS) Tube compliment 6922 x4 6CA4 x2 Channel balance 0.5dB maximum Power consumption 44W Dimensions W: 398mm / H: 103mm / D: 354mm Weight 8.0kg
