Trichord Research Dino mm-mc

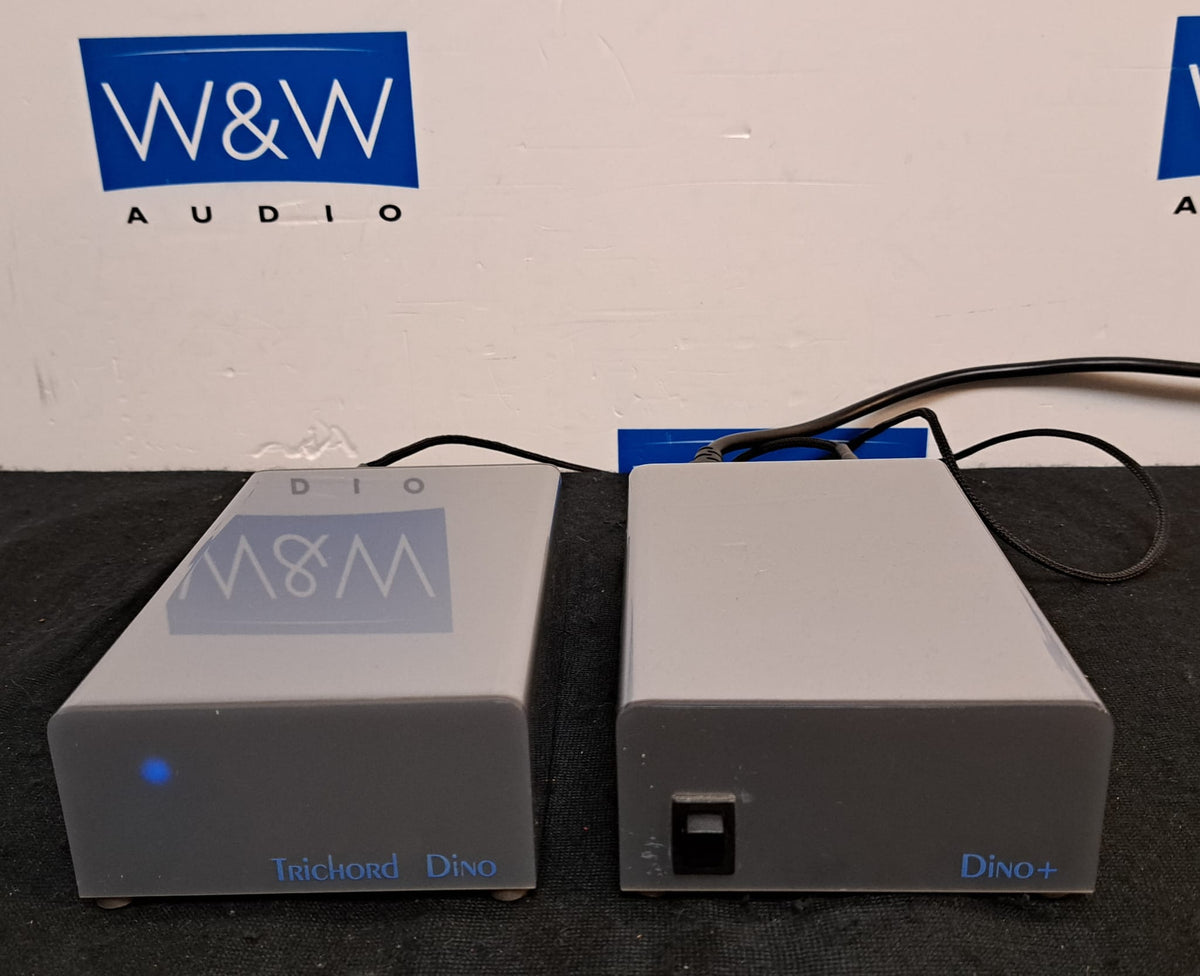

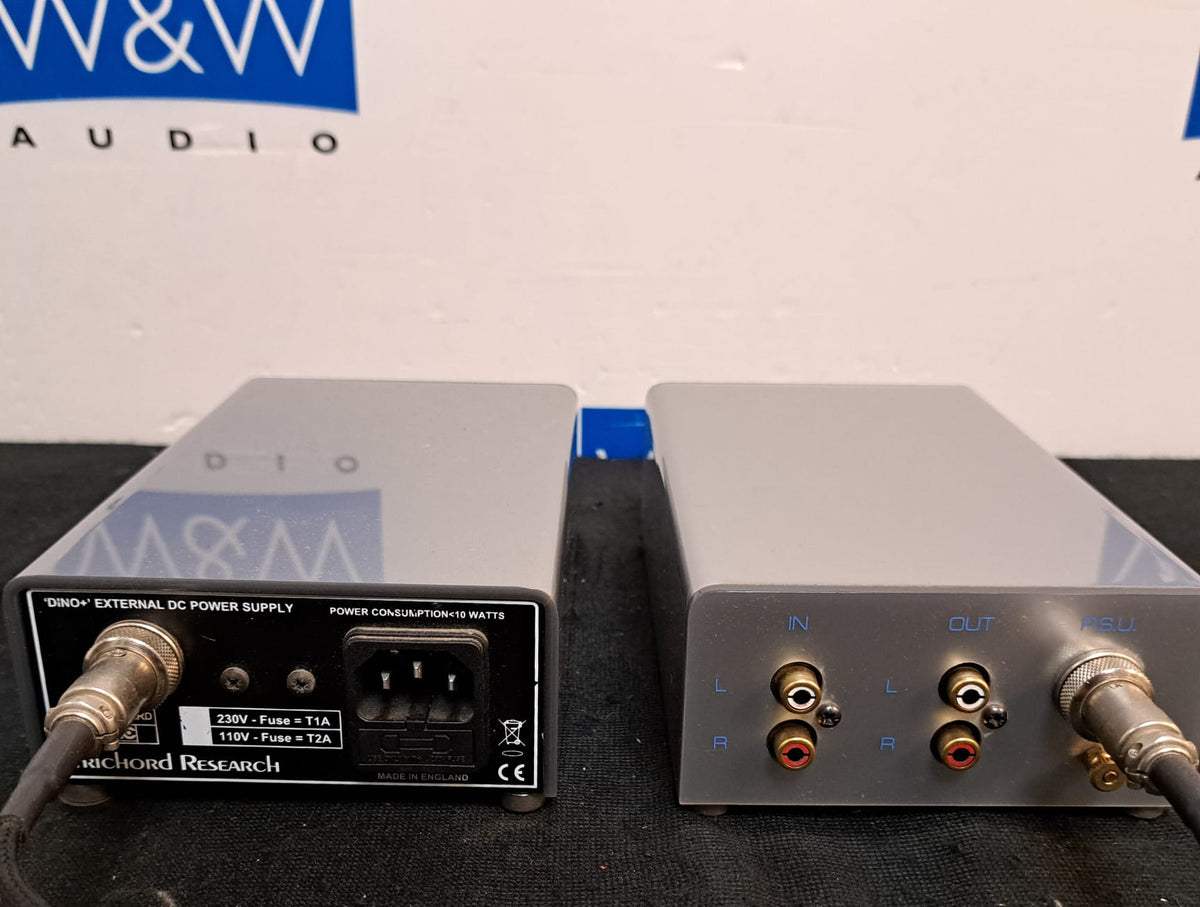

The Trichord Dino is a stereo phono amplifier for moving coil or moving magnet cartridges. The unit uses fully passive RIAA equalisation between two active gain stages. The Dino can be powered by either an AC or DC power supply.

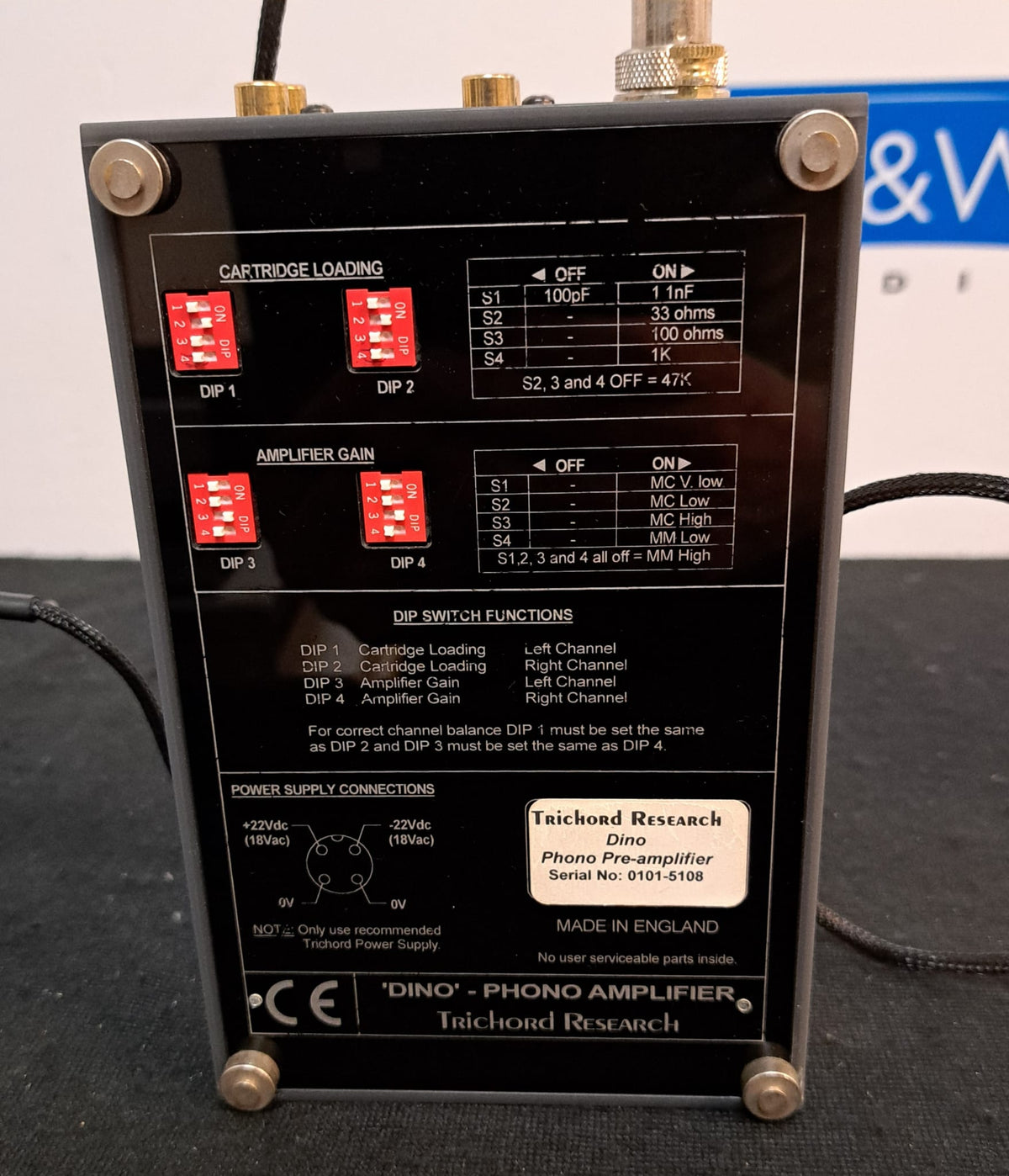

Loading resistance: 33, 100, 1k or 47k ohms Loading capacitance: 1.1nF (MC), 100pF (MC) Gain: 48, 52, 63, 70 or 74dB RIAA characteristics: 20Hz to 20kHz AC supply: 0-17V, 0-17V 50/60Hz DC supply: 0-22V, 0-22V Dimensions: 130 x 58 x 112mm
