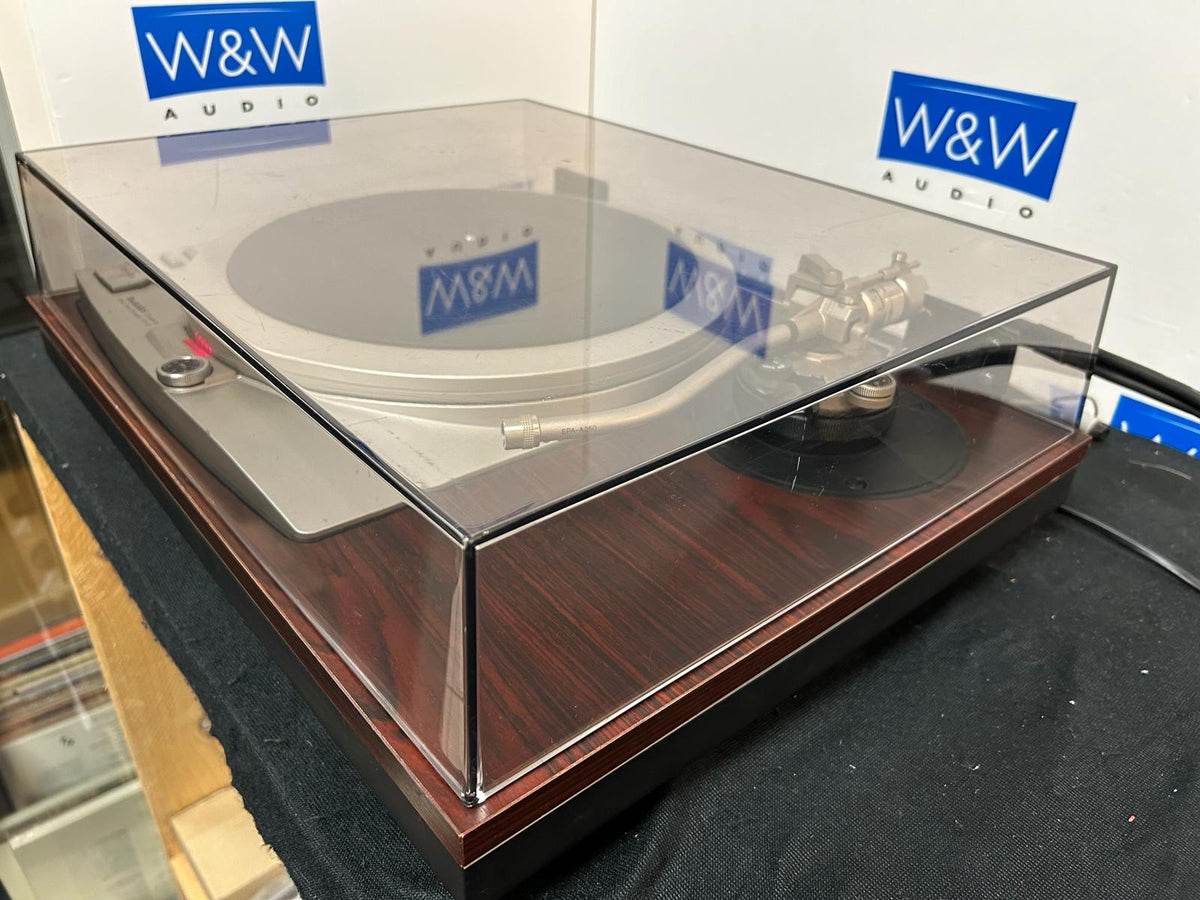

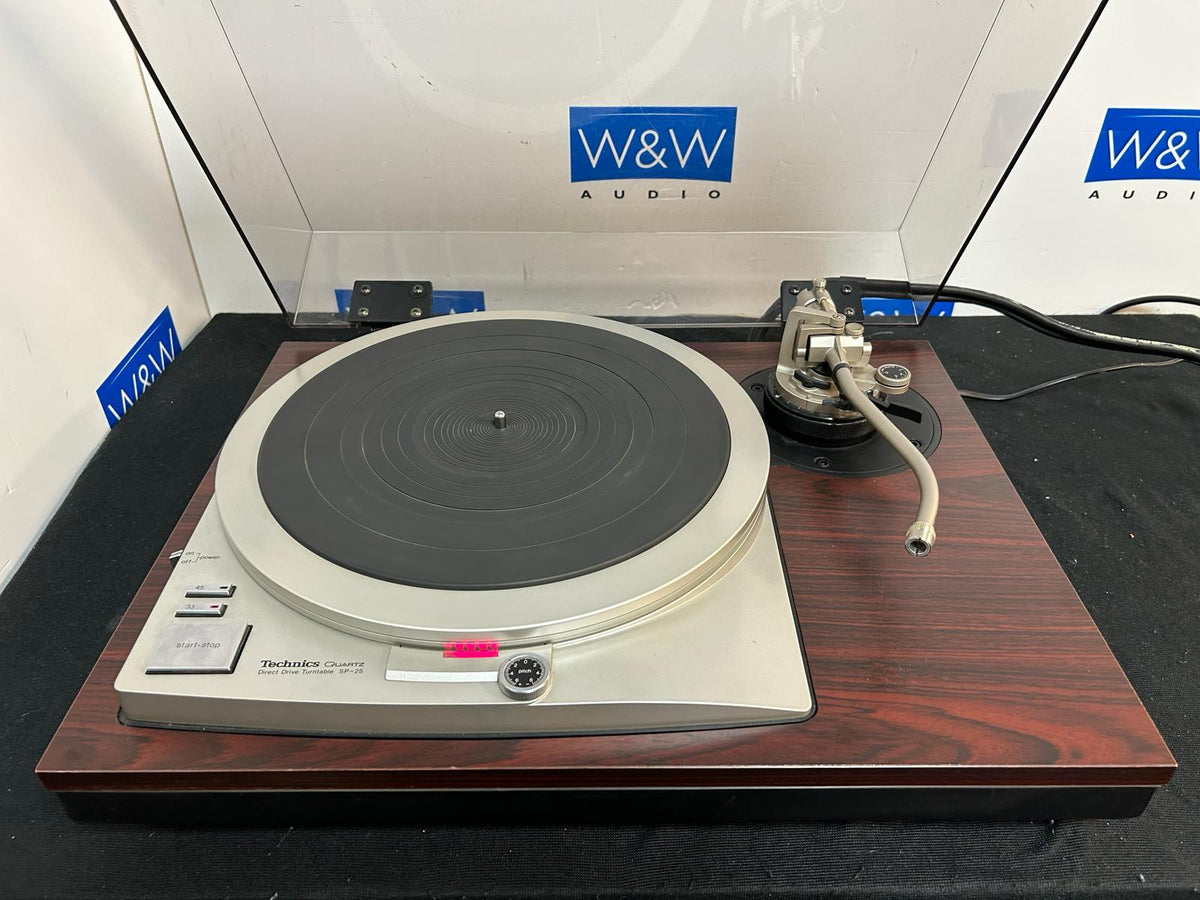

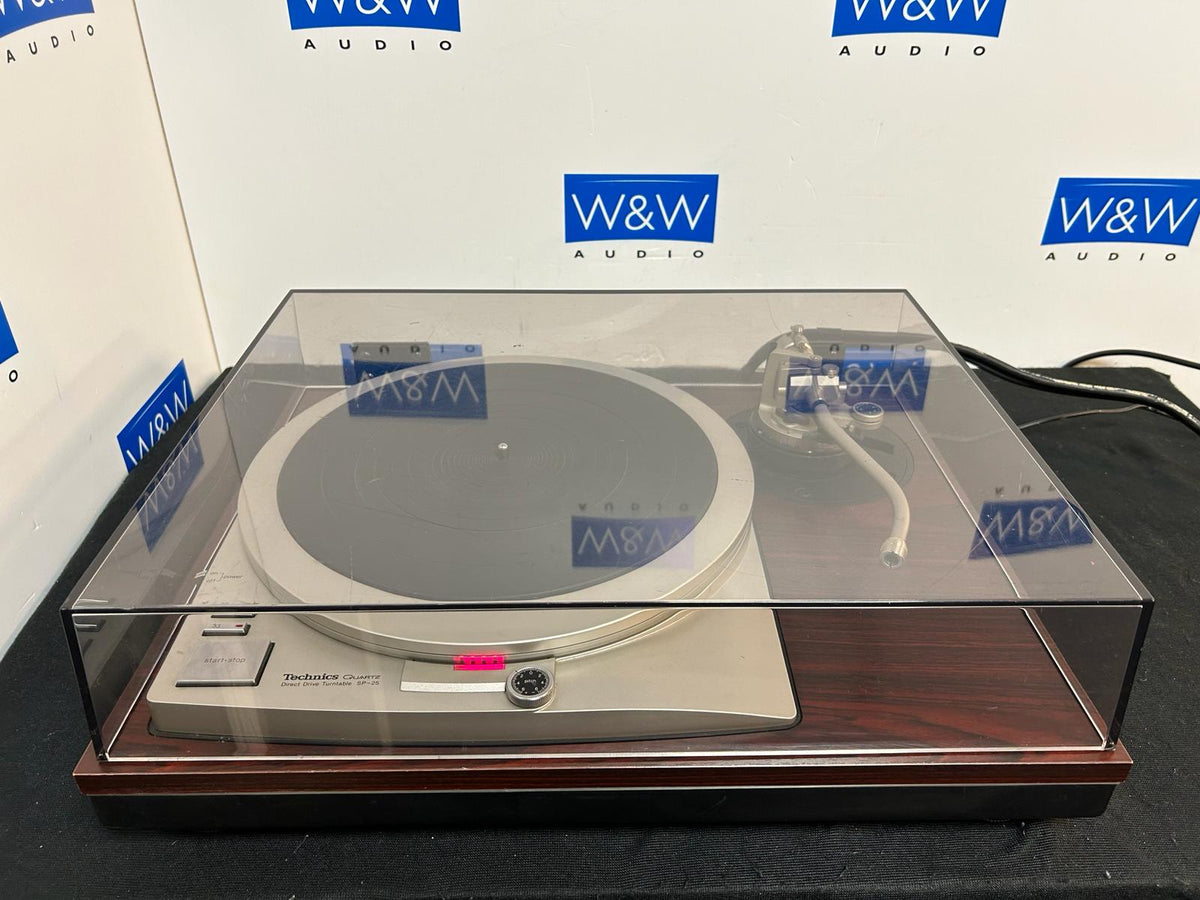

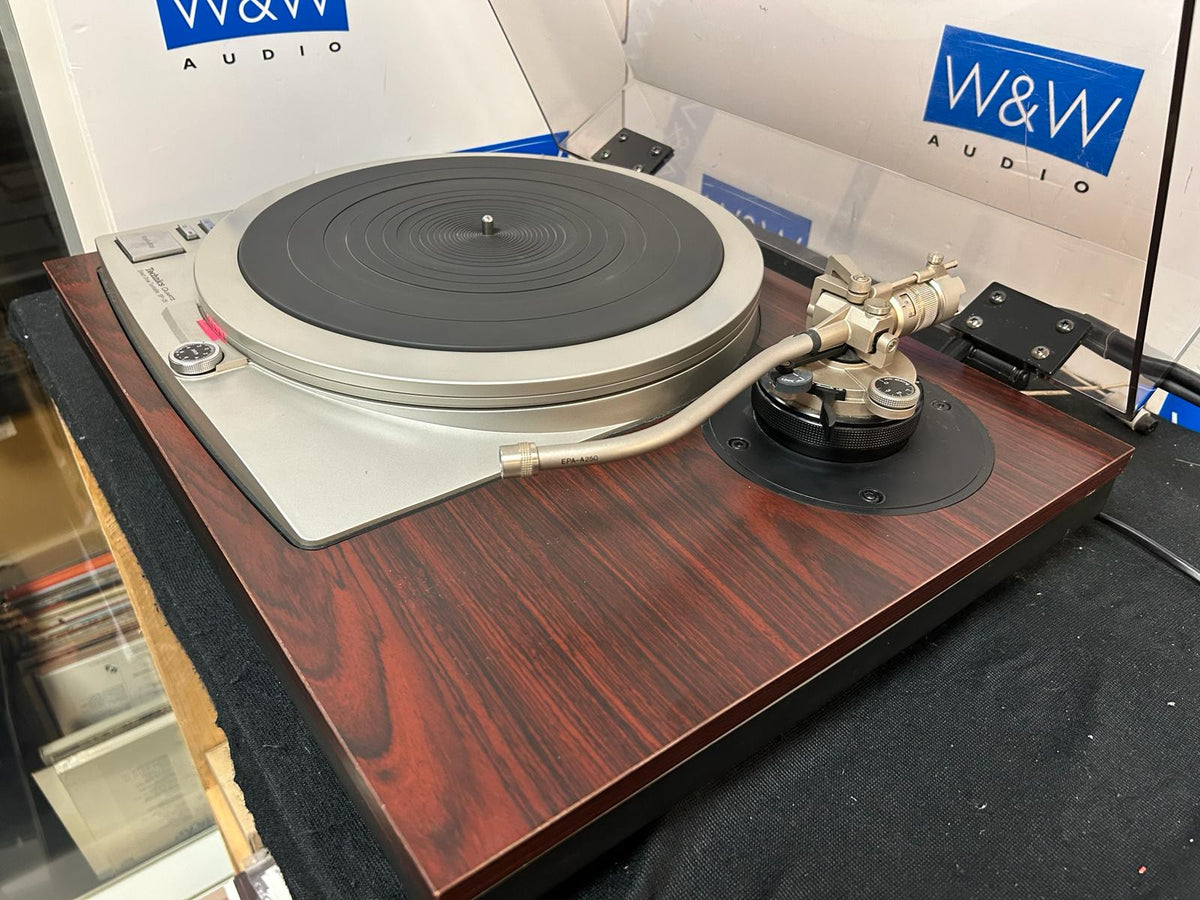

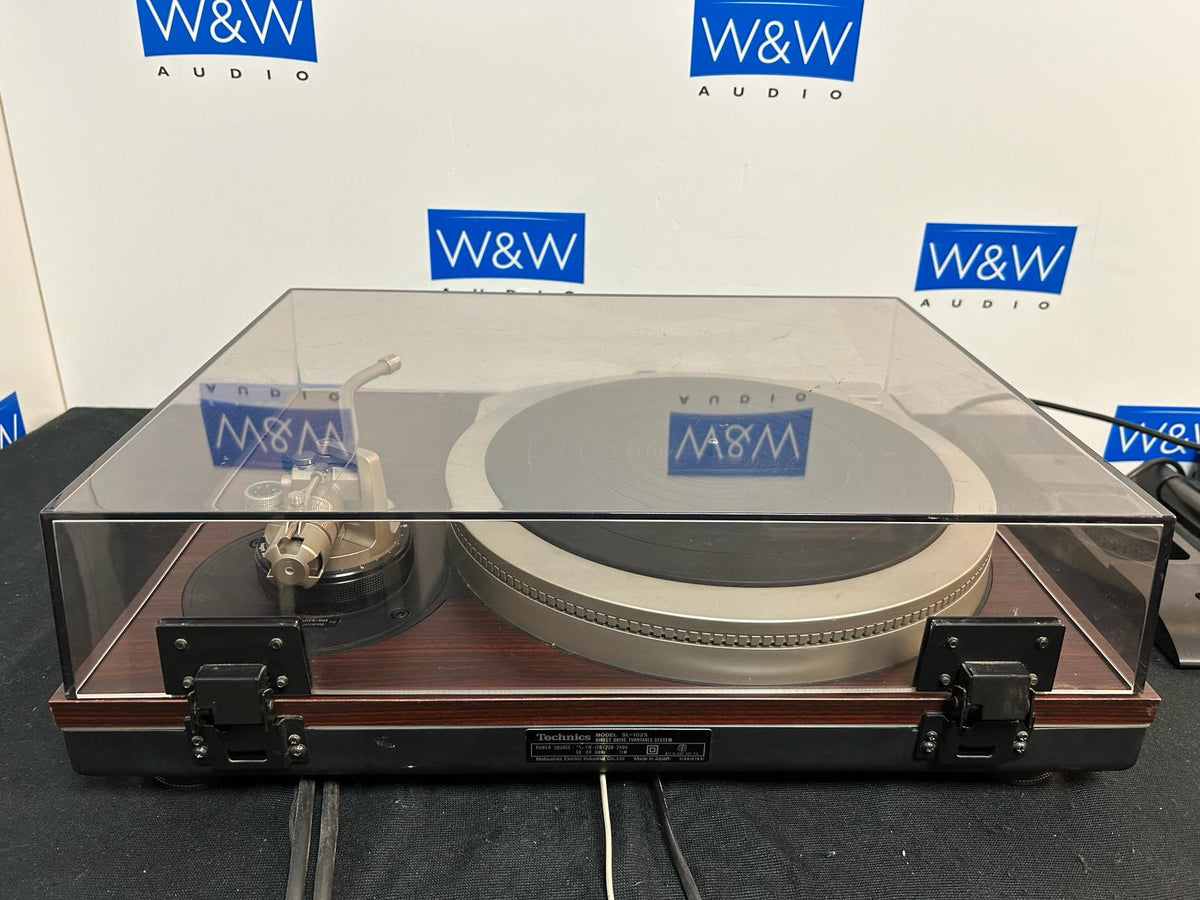

Technics SL-1205

Quartz synthesizer direct drive turntable system with universal type system tone arm. Universal type system tone arm EPA-250 is used for the pickup. Uses dynamic damping system, gimbal suspension support structure, and precision helicoid arm height adjustment mechanism. SP-25 is adopted for the turntable. Continuous pitch control is possible within the range of rated speed ± 6% with the quartz lock on. The motor is equipped with a high torque integrated structure D. D. motor. SH-15B2 is used for the turntable base. In addition to the use of an integrally molded cabinet made of special viscoelastic rubber, the turntable is also made into a three layer dead-end structure made of special rubber.

Type Direct drive player system Drive system Direct drive Drive motor Brushless DC motor Control system Quartz phase locked control Turntable (Including Rubber Sheet) 33.9 cm Aluminum Die-cast, 1.85 kg (Including Rubber Sheet) Number of revolutions 33 1/3, 45 rpm Fine adjustment of rotational speed + / - 6 per cent Rotational speed deviation Within +/- 0.002% Wow flutter 0.025%W.R.M.S(JIS C5521) Signal-to-noise ratio 78dB(IEC98A weighted) Tone Arm Section Format Dynamic damping system tone arm Gimbal suspension system Applicable Cartridge Weight 6g - 8g 10.5g - 12.5g (When Using Auxiliary Weight) Applicable Cartridge Compliance (dynamic, 100 Hz) 8-14x10-6cm/dyne 6-12x10-6Cm / dyne (with auxiliary weights) Pwer 100 VAC, 50Hz/60Hz Power consumption 10W External dimensions Width 526x Height 172x Depth 420 mm Weight 16.1kg
