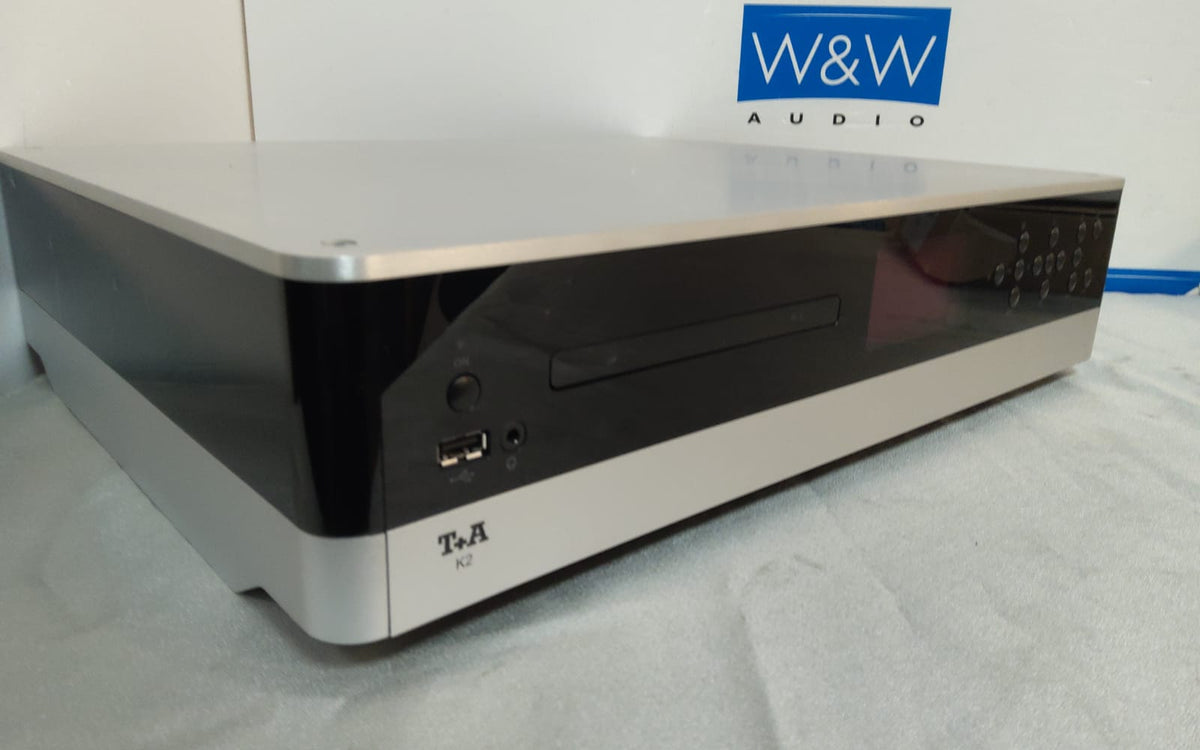

TA Hifi K2
€749,00
Skip to product information

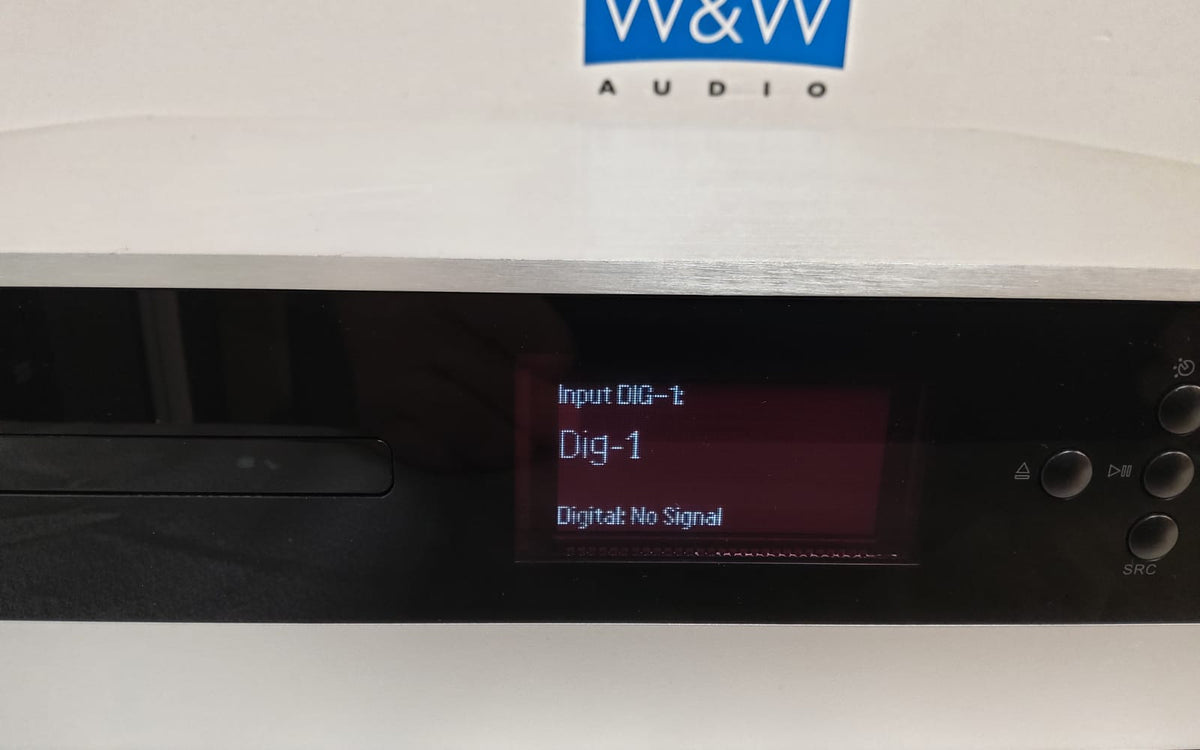

The mains power supply is equipped with a toroidal transformer for superb stability under load, and provides a generous excess of energy at all times. The control circuit board features a VFD screen with full graphics capability, offering a context-sensitive display of all the machine's wide-ranging functions. The new DVD mechanism is mounted in floating bearings, and features high-quality dual-laser optics. The ultra-modern main circuit board with control processor, digital signal processor and 24-bit 192 kHz D/A converters. All the digital inputs and outputs are integrated into this board, ensuring ultra-short signal paths. Five power output stages with modulator, double MOSFET transistors and heat-sink. Power amplifiers with reservoir capacitors, chokes and protective circuitry. DVD decoder board with 1080p scaler and video processing. High-quality audio input and video output board featuring high-speed video op-amps with 150 MHz bandwidth. The Streaming Client board is the key to connecting to Internet radio, network, iPod and USB sources.
Amplifier section external inputs Tape, Aux, TV (2V / 20 kOhm), iPod Headphone output for dynamic headphone > 30 Ohm Recording output 1V / 150 Ohm Nominal output per channel (Stereo) 150 W into 4 Ohm 95 W into 8 Ohm Peak output 230 W into 4 Ohm 130 W into 8 Ohm Total harmonic distortion < 0,005 % Intermodulation < 0,005 % Channel separation > 65 dB Frequency response 1 Hz - 60 kHz Operation modes, sound formats Zone 1 Stereo (2.0 + 2.1), 3-channel (3.0 + 3.1) Virtual Surround Zone 2 Stereo 2.0 Bassmanagement, cross-over freq. full-range, 40, 60, 100, 150 Hz Tuner section Tuning frequency range 87,5 MHz - 108 MHz Input sensitivity 2 uV Overload margin > 125 dB Cross-talk (Stereo) > 40 dB RDS-Function Station name, Radio text, time of day Streaming Client only K2 M Formats MP3, WMA, (WMDRM 10), AAC, FLAC, OGG-Vorbis Media server UPnP AV + DLNA-compatible servers, vTuner Internet Radio Service Interfaces USB 2.0, LAN, W-LAN iPod dock Playbaxk of audio and video files from the iPod, the iPod can be controlled and remote controlled DVD-Player Mechanism Linear disc drive with dual-laser system (650 + 785 nm) D/A Converter 24 Bit, 192 kHz Digital output SP-DIF, co-ax 0,5V / 75 Ohm, LPCM to IEC 958, Dolby Digital (AC3), dts to IEC 1937 Sound formats LPCM, MPEG, Dolby Digital, dts as downmix Video output Composite (CVBS), See also https://www.ta-hifi.de/wp-content/uploads/k2_en.pdf
