Sumiko S.10

Passive radiator, bass-reflex loaded, down-firing woofer

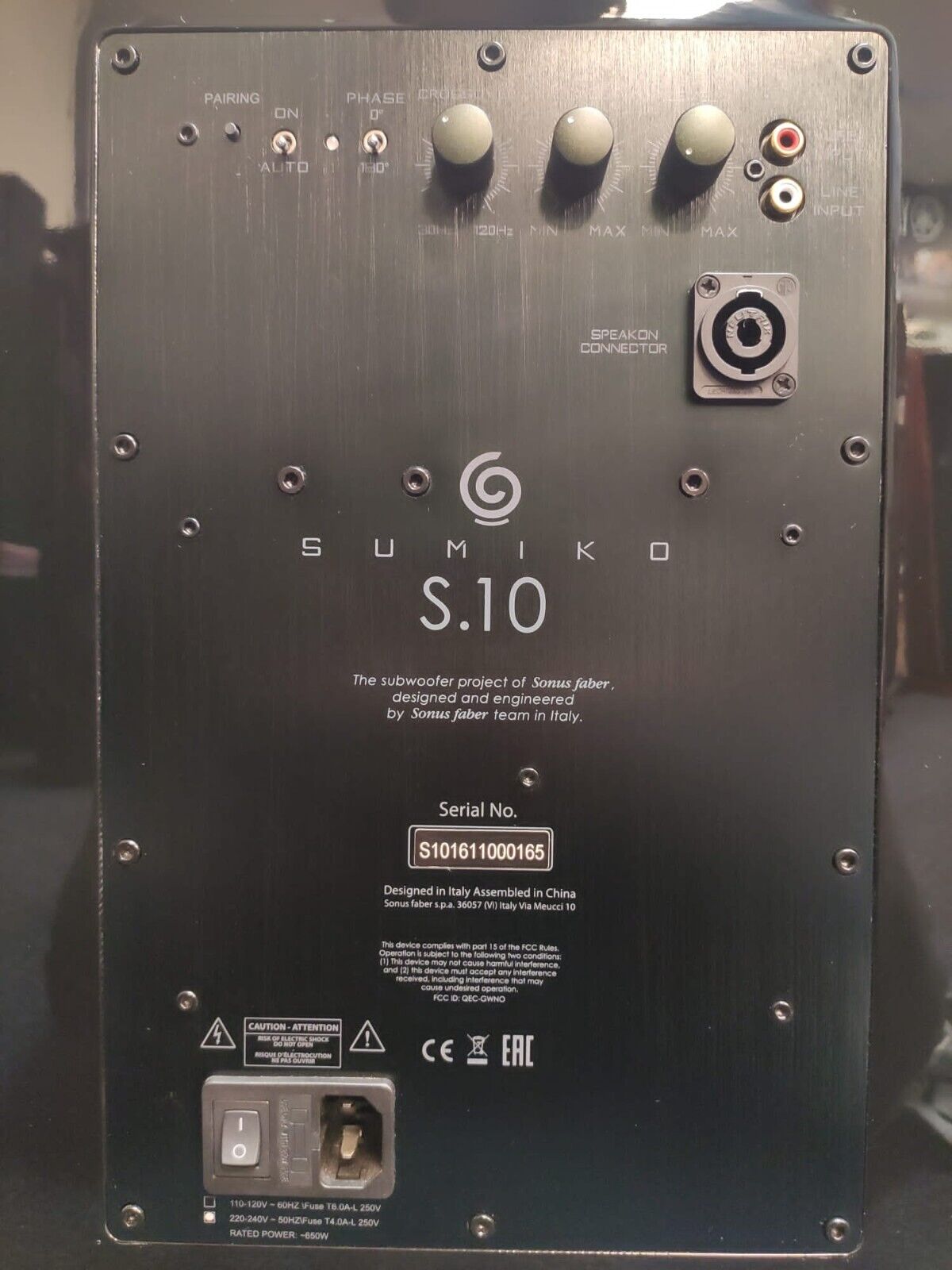

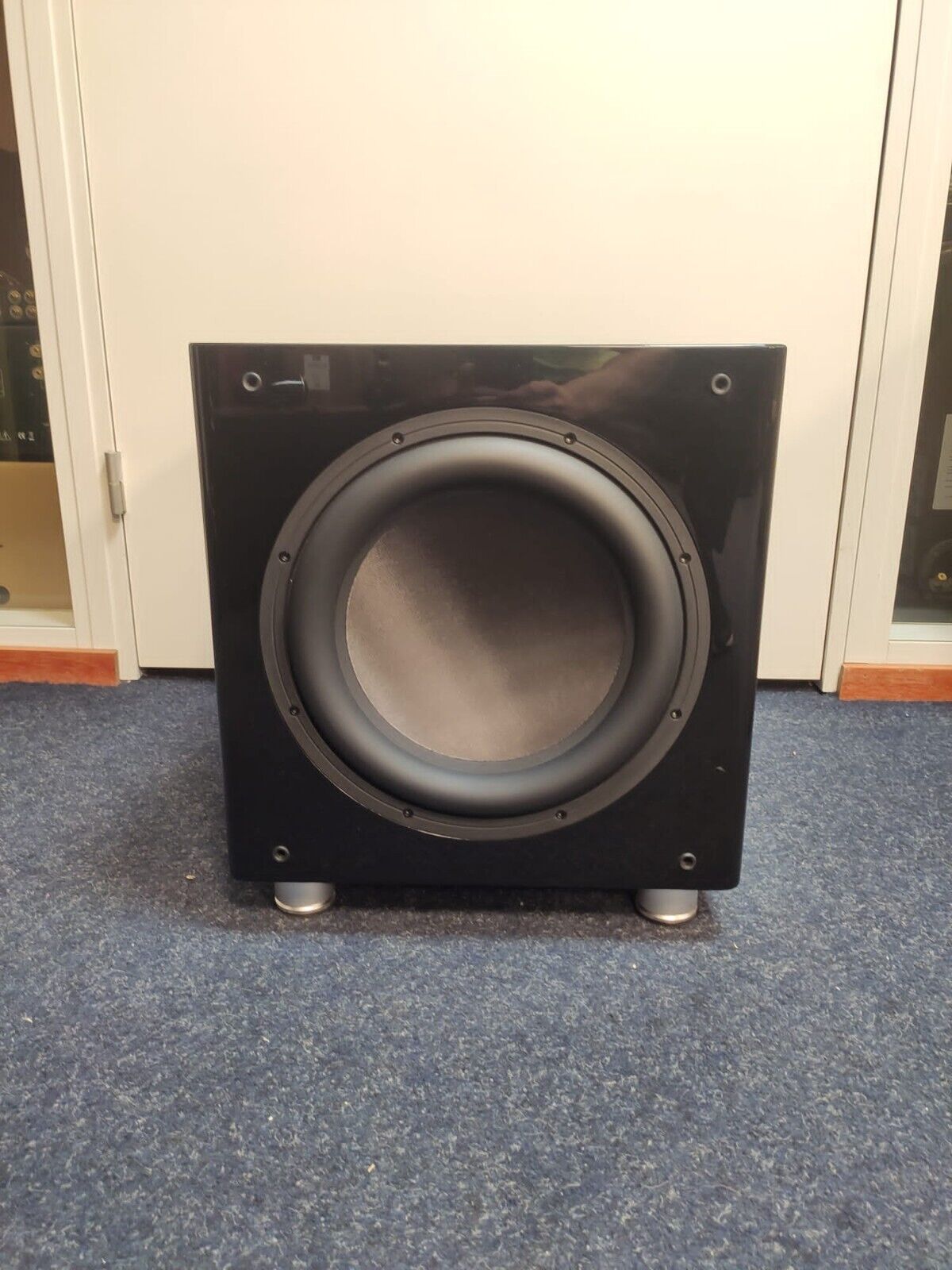

Drive unit 1 x 320mm (12 inch) very long throw, fiberglass sandwich construction honeycomb, wide rubber surround woofer Passive tuning unit 1 x 320mm (12 inch) very long throw, fiberglass sandwich construction honeycomb, wide rubber surround Amplifier Type High linearity Class D Power amplifier 500 W rms, 1 kW peak Frequency response (in room)@-6dB/@-3dB From 22/30 Hz to Fc (Fc user adjustable) Mains input voltage Factory selected,120Vac - 60Hz or 230 Vac - 50 Hz Fuse 110-120V - 60HZ/Fuse T6.0A-L 250V 220-240V - 50HZ/Fuse T4.0A-L 250V System protection - Output signal short circuit - Over-heating - DC fault Controls - Independent Line and LFE volume controls; - Continuously adjustable Crossover frequency(30 to 120Hz), filter slope 24dB/oct; - Signal phase inversion switch (0/180') Additional features - Auto switch-on/off (deselectable) - Pairing button Audio signal inputs - LFE (Low Frequency Effect) signal, phono plug; - Line level signal, single phono plug; - High level signals, Neutrik 4-pole Speakon - RF signal RF receiver sensitivity -90 dB RF link coverage 10m indoor range Power consumption >= 0.5 W (Stand-by) Rated power 650W Finish Piano Black Dimensions (WxHxD) 40 x 44,5 x 45 cm 17.3 x 17.5 x 17.7 in (including feet) Weight 29 Kg - net weight 64 lbs - net weight
