Parasound ZoneMaster Z-12

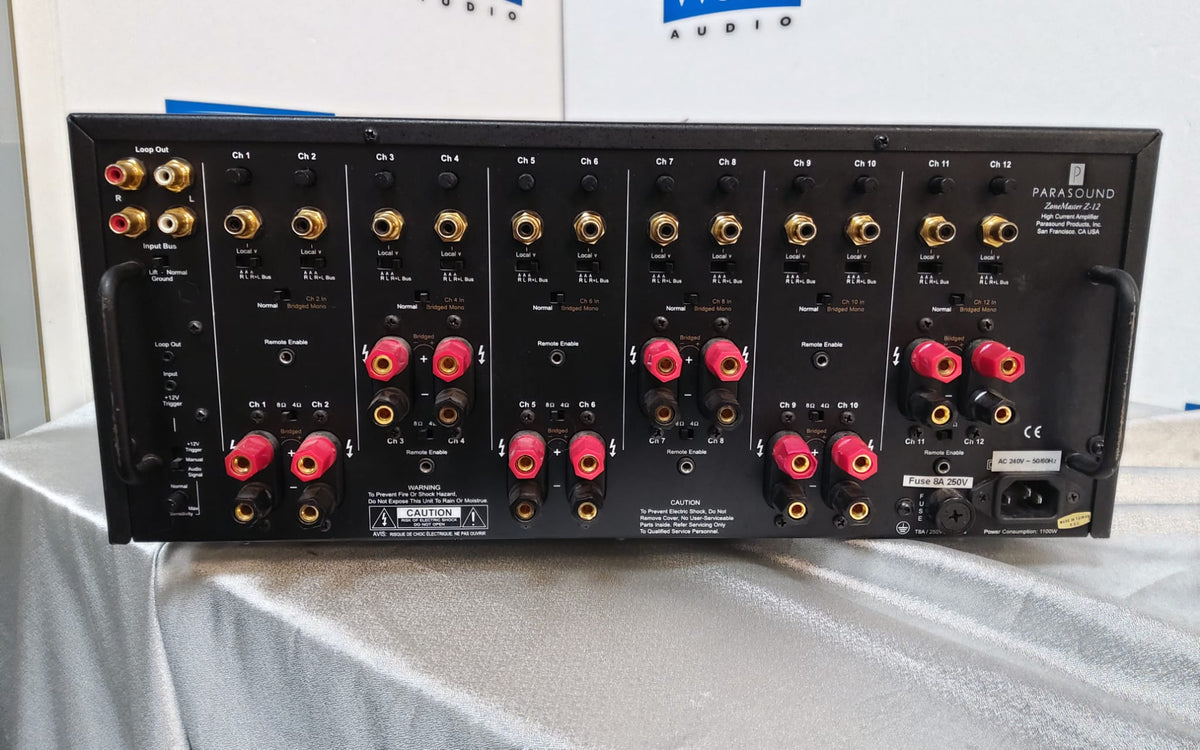

Parasound ZoneMaster ZM 12 drives two channels at 120 watts each, 8 ohms, with the remaining 10 channels at 60 watts each. With 4-ohm speakers typical of architectural audio, the ratings are 150 and 100 watts respectively. There are also A and B speaker outputs for each channel. With this upgraded performance and features, the ZM 12 represents a significant advance over its 12 x 50W predecessor, the ZM 1250.

Power Output : Zone 1 (Channel 1-2) 120 watts x 2 @ 8 ohm 150 watts x 2 @ 4 ohm or 2 ohm Power Output : Zone 2-6 (Channels 3-12) 60 watts x 10 @ 8 ohm 100 watts x 10 @ 4 or 2 ohm Note: Power ratings are RMS, All Channels Driven (20 Hz - 20 kHz) Minimum Speaker Impedance: A+B Outputs of a Single Channel: 2 ohm Note: Continuous operation at this minimum impedance might require additional ventilation for the amplifier. Frequency Response: 20 Hz - 20 kHz, +0/-0.25 dB 5 Hz - 50 kHz, +0/-3 dB Total Harmonic Distortion: < 0.05 % at typical listening levels < 1.0% at full power Interchannel Crosstalk: 70 dB at 20 kHz Total Gain: 29 dB (Level controls set to Maximum) S/N Ratio: >112 dB, input shorted, IHF A-weighted Dimensions: Width: 17.25 in. (437 mm) Depth: 14.5 in. (369 mm) Depth, with cables: 16 in. (406 mm) Height, with feet: 4.15 in. (105 mm) Height, without feet: 3.5 in. (89 mm) Weight: Net: 21 lbs (9.5kg) Shipping: 27 lbs (12.2kg)
