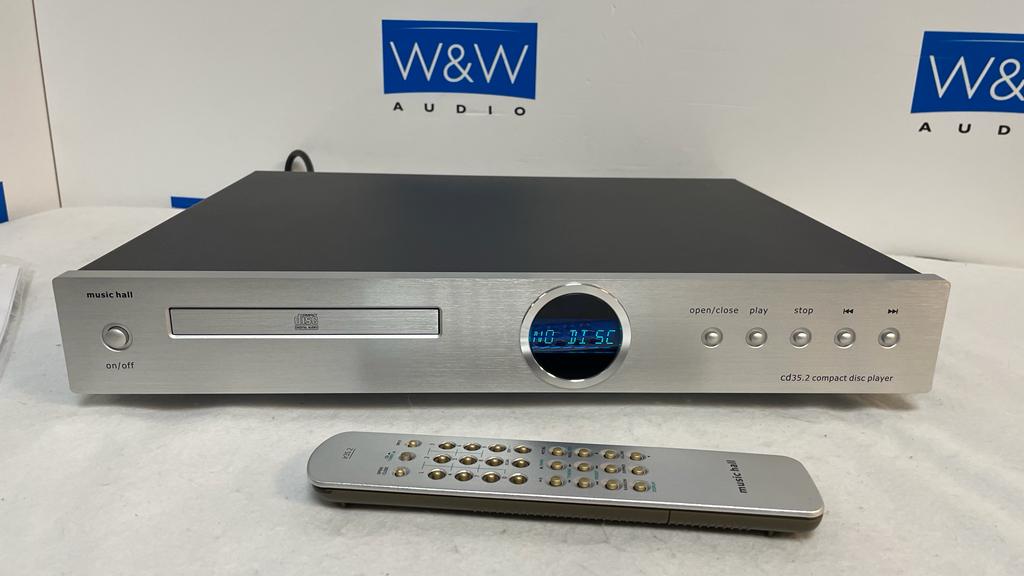

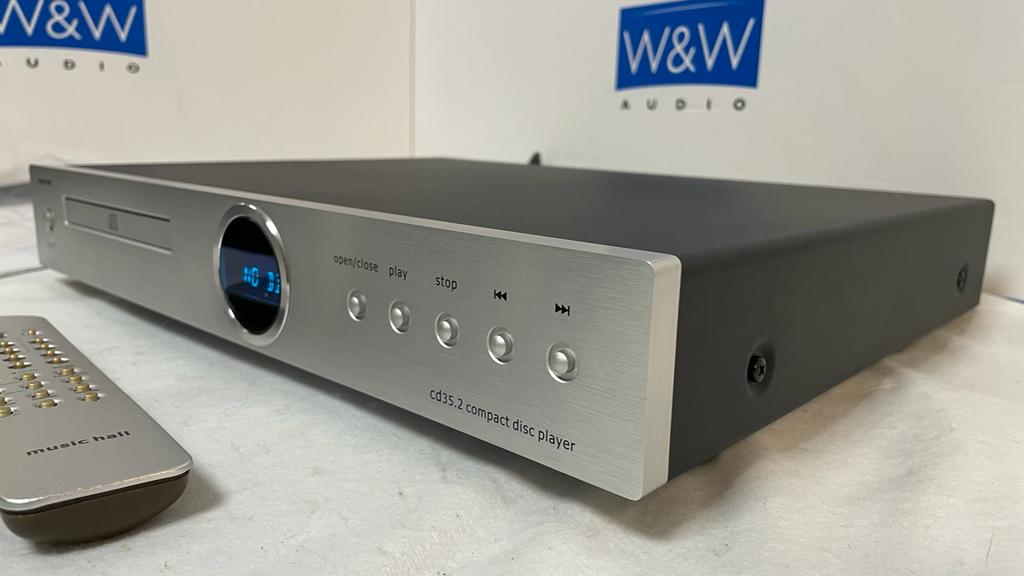

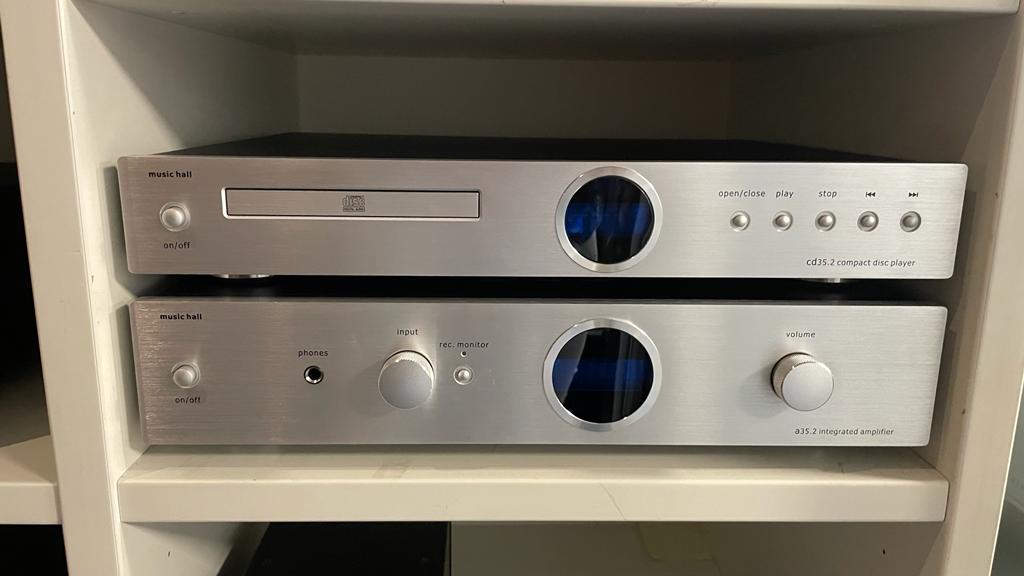

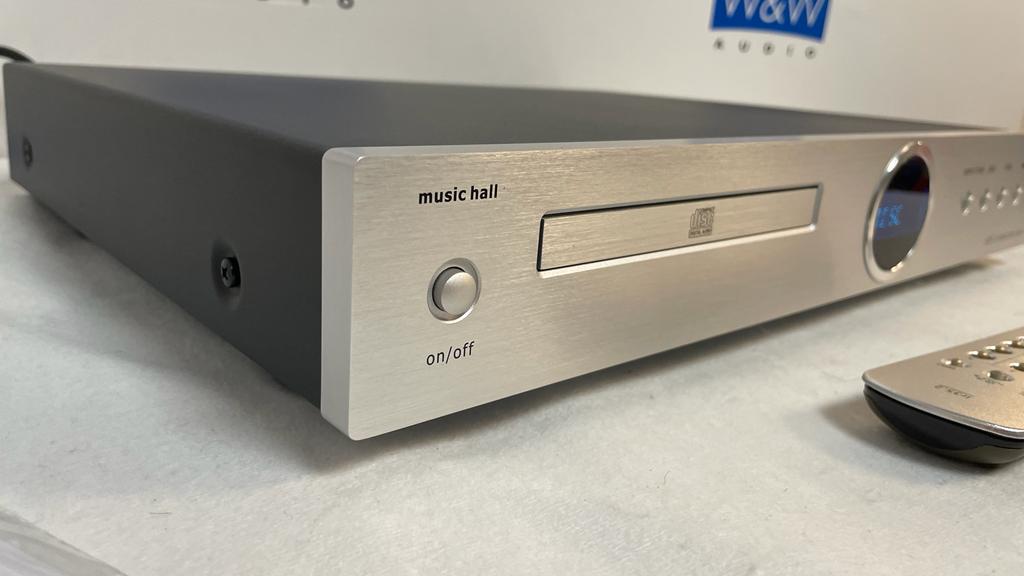

Music Hall CD-35.2

Music Hall CD35.2 player is based on the same chassis as in the famous CD25, but the key parts have been upgraded. First of all, the transport has been updated - now the player has a high-current Blue Tiger loader from the Australian Stream Unlimited. The second significant novelty concerns the digital part. The developers decided to use Burr-Brown PCM1732 with a built-in HDCD decoder (although there are not many such discs, but still there) as a DAC. Modernization also touched the section of the clock generator. Also they did not forget about the power supply - a big-sized toroidal transformer is used to provide low-power circuits with clean energy.

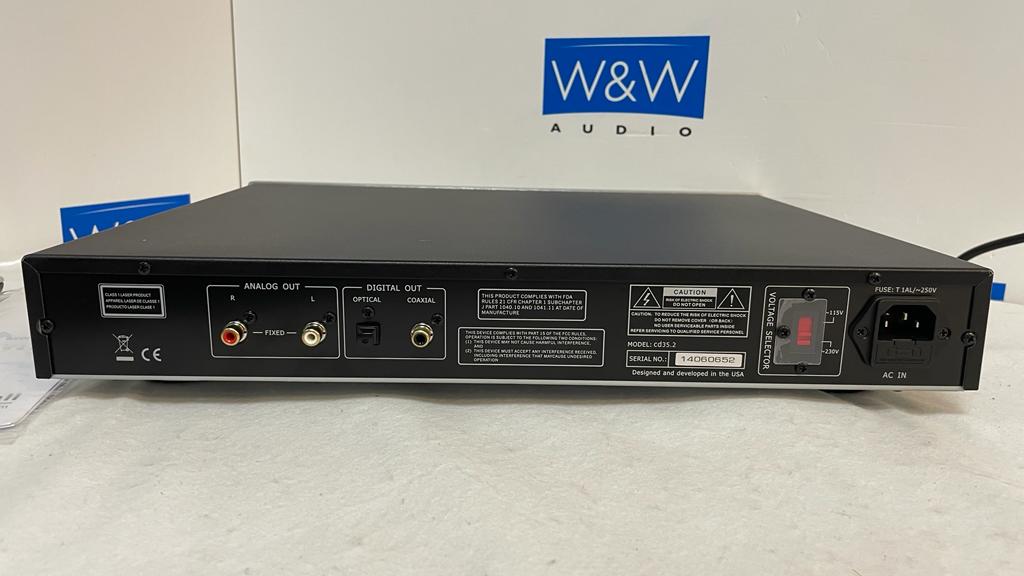

DAC: Burr-Brown PCM 1732 24 bit/192 Khz with HDCD decoder Transport: StreamUnlimited CD80 Digital Output Connection: Coaxial: 75 ohm and Optical: TOSLINK Frequency Response: 20Hz - 20KHz(+/-0.5dB) Harmonic Distortion: <0.0026% (1KHz) Channel Separation: 100dB Signal to Noise Ratio: 110dB Analog Output: 2.1V Dimensions: W17" x D14 1/2" x H3" Weight: 12.8 lbs. pkgd.
