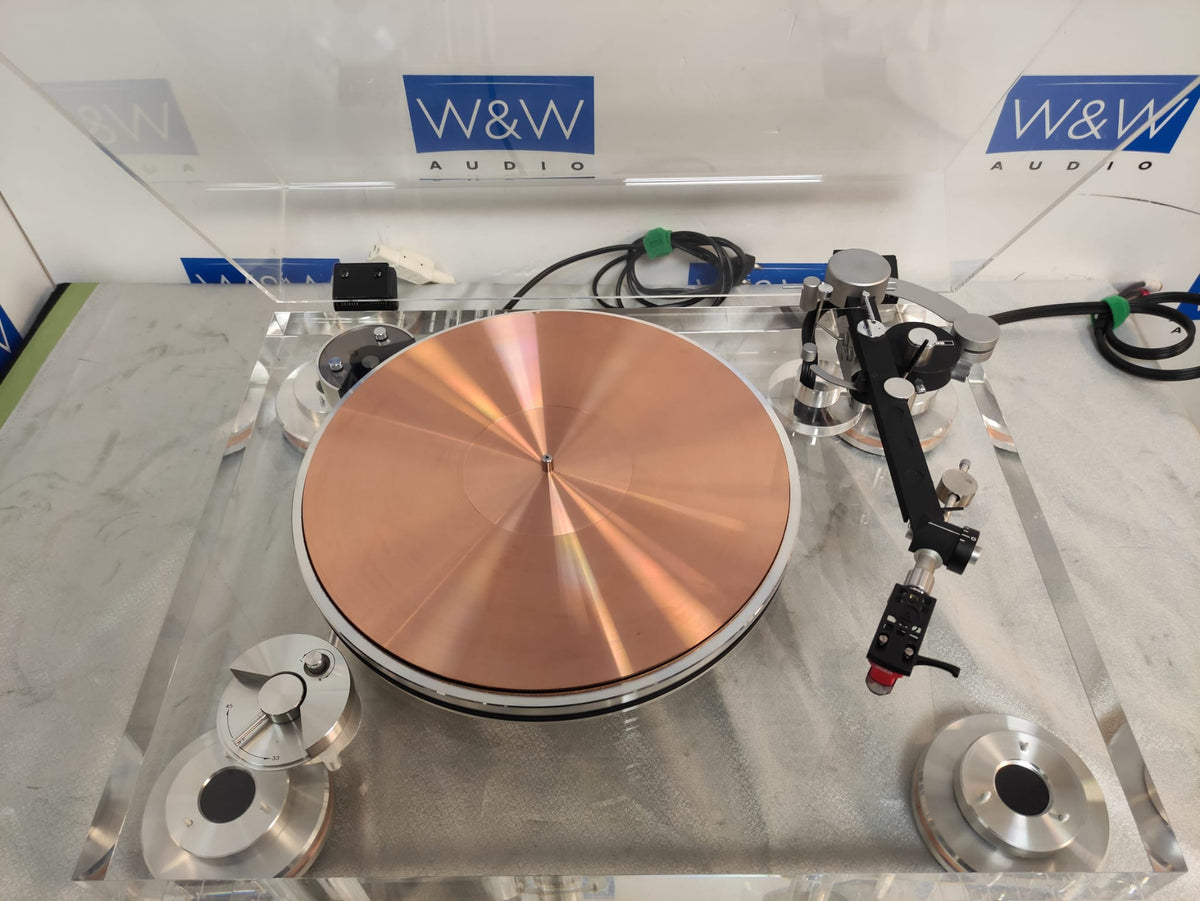

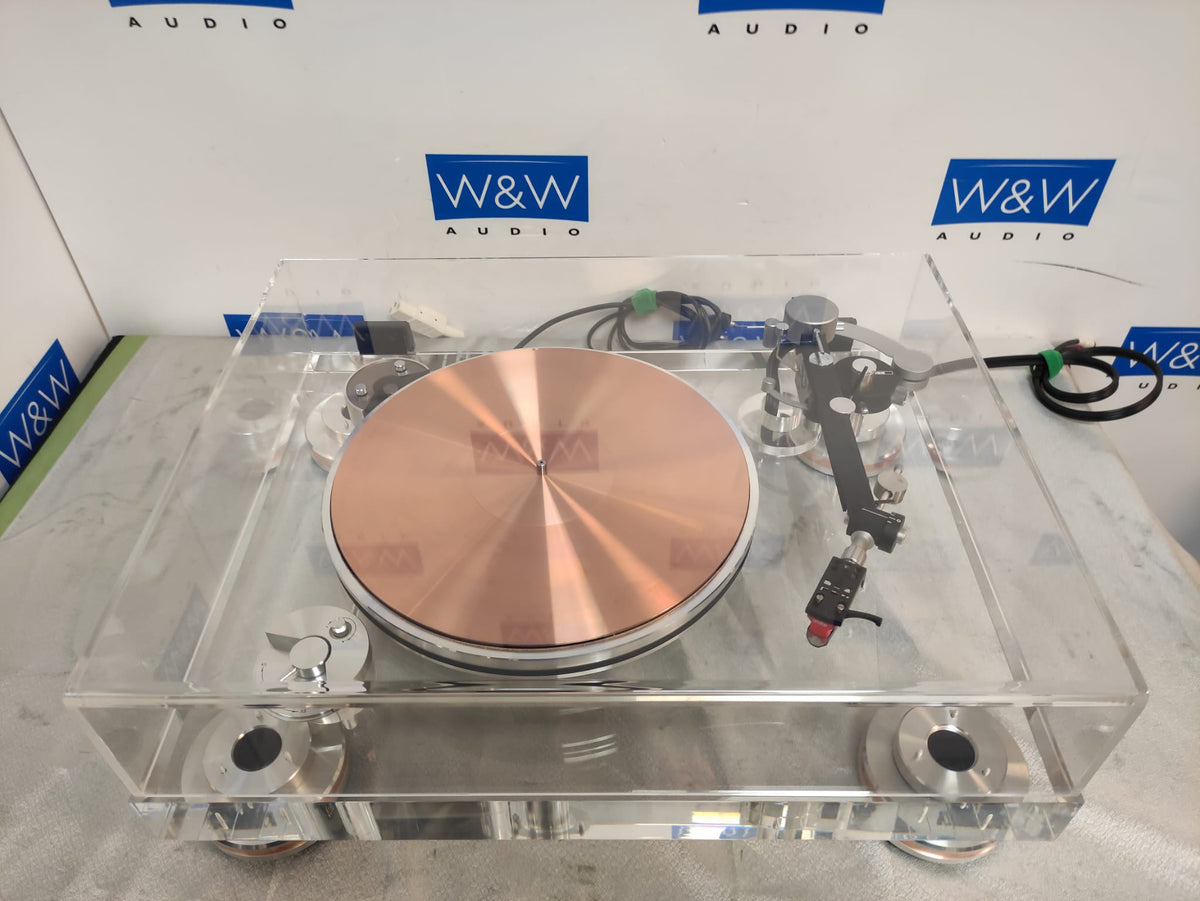

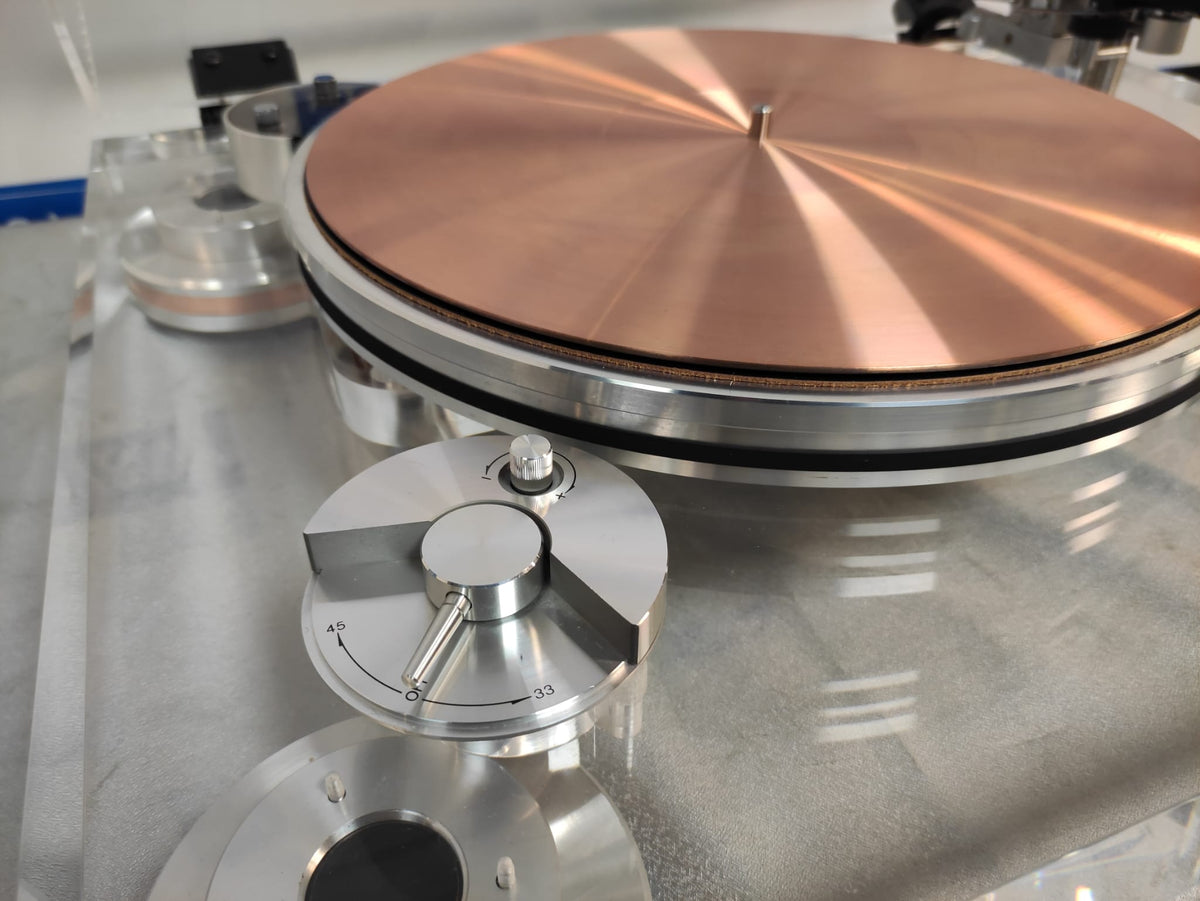

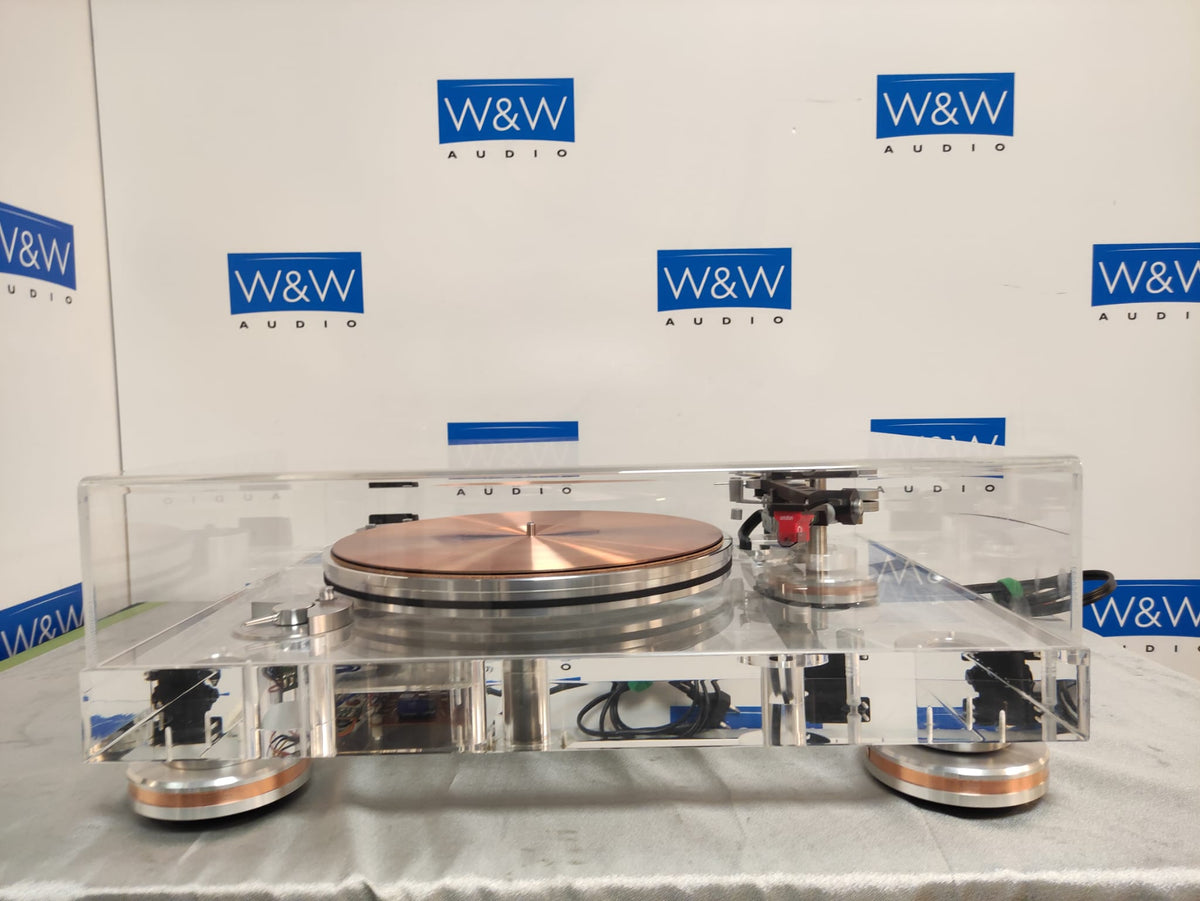

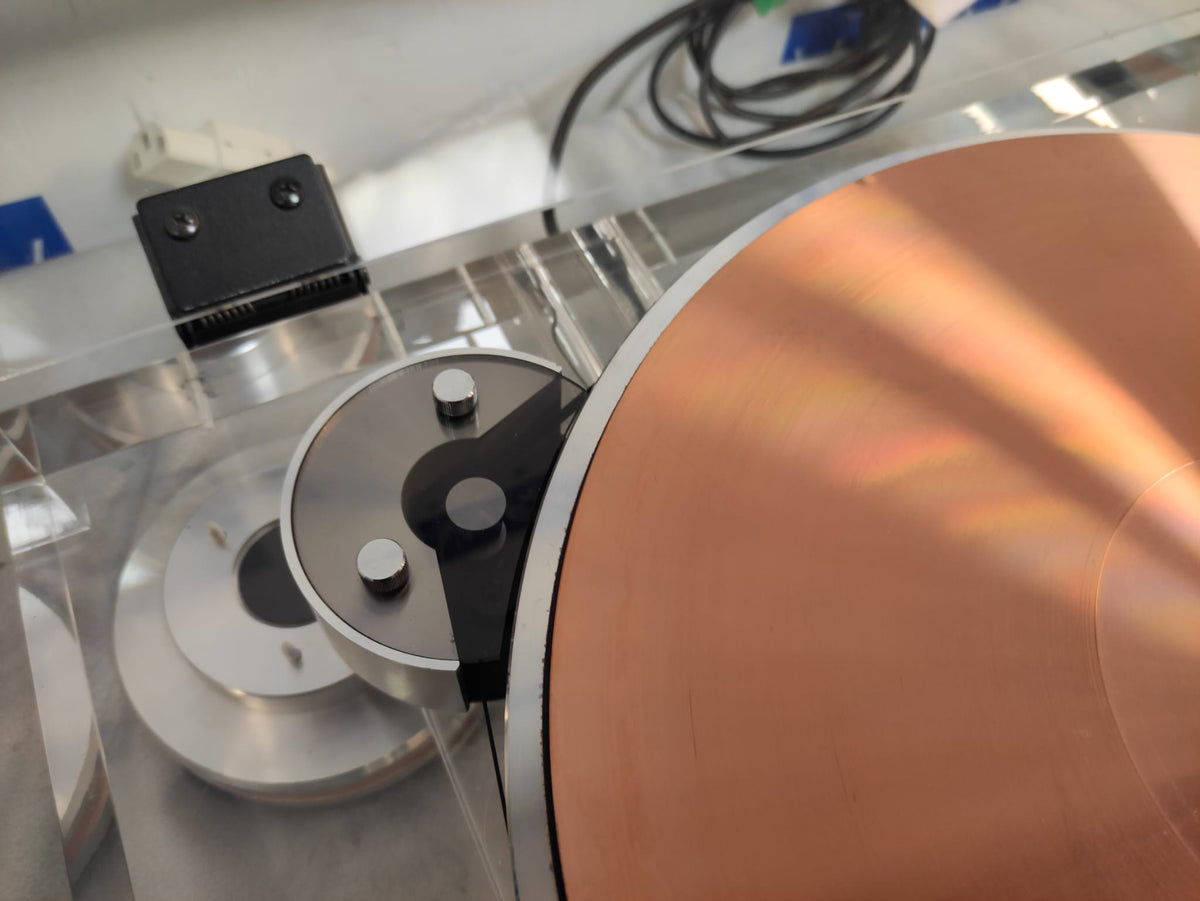

Micro Seiki with Dynavector 505

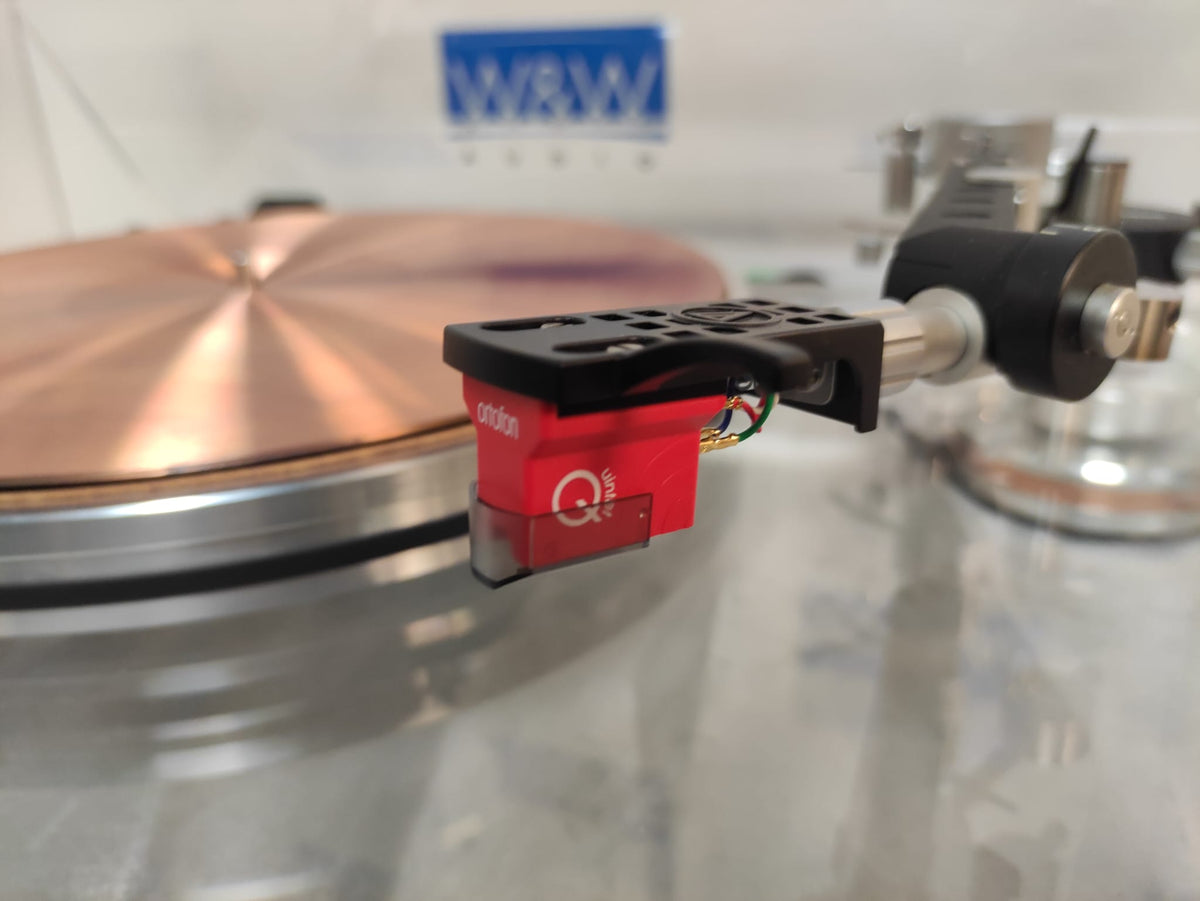

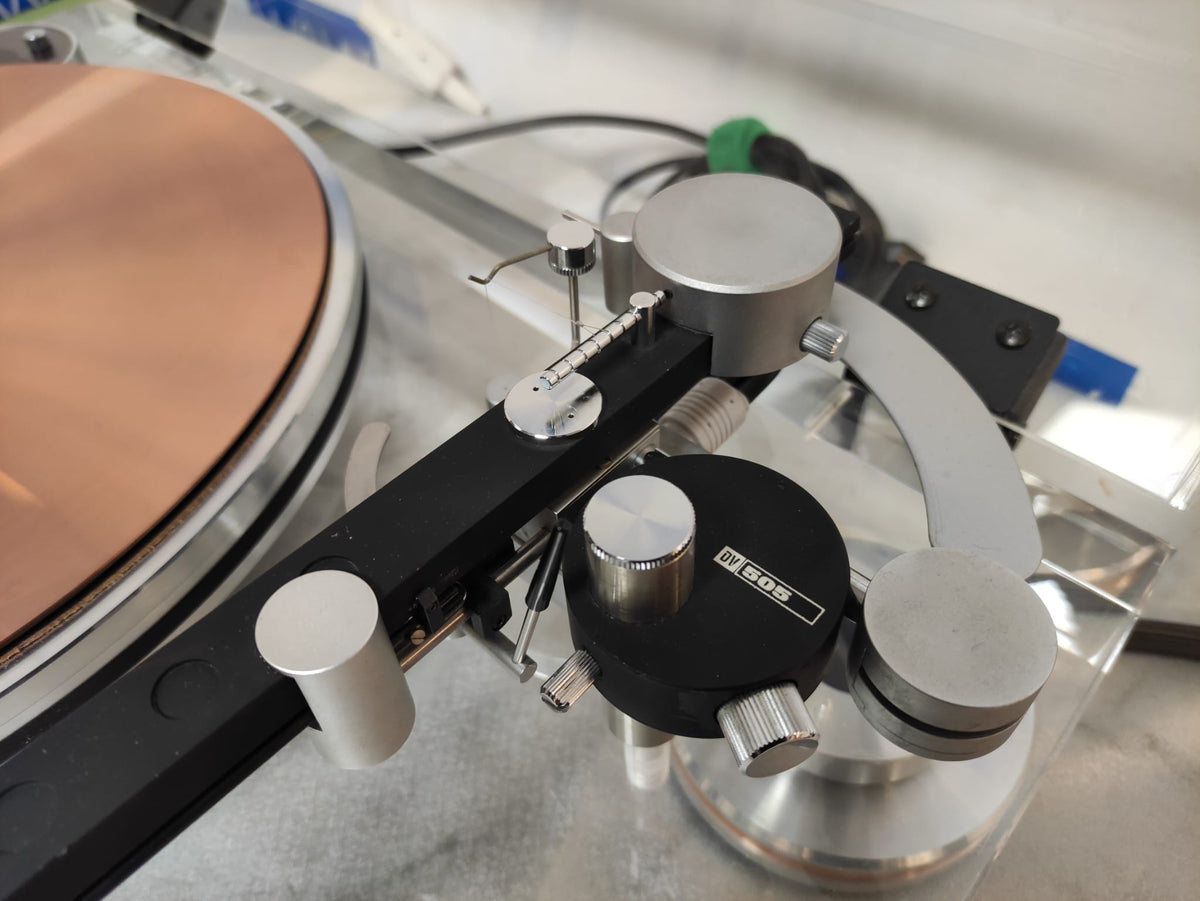

Micro Seiki with Dynavector 505 and Ortofon quinted red. The Dynavector DV-505 is a bi-axial inertia-controlled dynamic balance tonearm, while the Ortofon Quintet Red is a moving coil (MC) phono cartridge. The DV-505 is characterized by its total length of 335mm, effective length of 241mm, and an overhang of 15mm. The Quintet Red, on the other hand, features a 0.5mV output voltage, an elliptical stylus, and a frequency response of 20-20,000 Hz +/- 2.5 dB.

Dynavector DV-505 Tonearm: Type: Bi-axls inertia controlled dynamic balance type. Total Length: 335mm (including headshell). Effective Length: 241mm. Overhang: 15mm. Offset Angle: 21.5 degrees. Height Adjustment Range: 38mm - 70mm (center of pipe). Cartridge Weight Range: 9g to 35g (with shell). Ortofon Quintet Red Cartridge: Type: Moving Coil (MC). Output Voltage: 0.5 mV at 1 kHz, 5 cm/sec. Stylus: Elliptical. Frequency Response: 20 - 20,000 Hz +/- 2.5 dB. Tracking Force: 2.1 - 2.5 g (recommended 2.3 g). Compliance: 15um/mN (dynamic, lateral). Internal Impedance: 7 Ohm. Recommended Load Impedance: >20 Ohm. Weight: 9g. Color: Red. Channel Separation: >21 dB at 1 kHz. Tracking Ability: 65um at 315 Hz at recommended tracking force.
