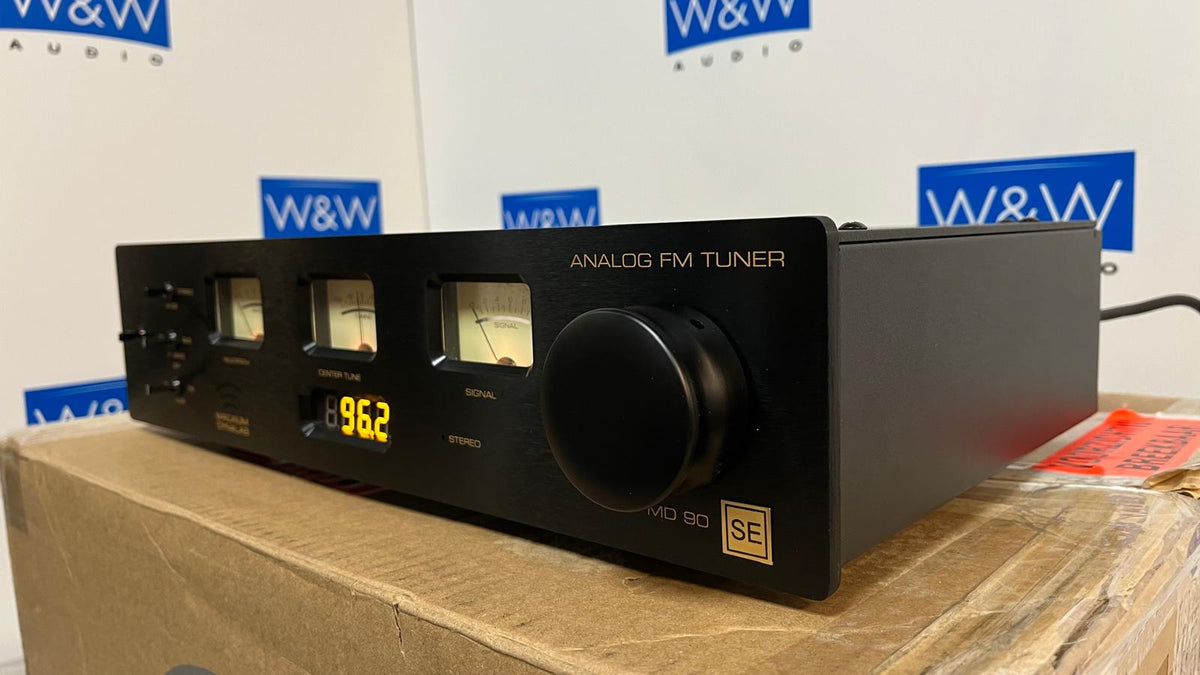

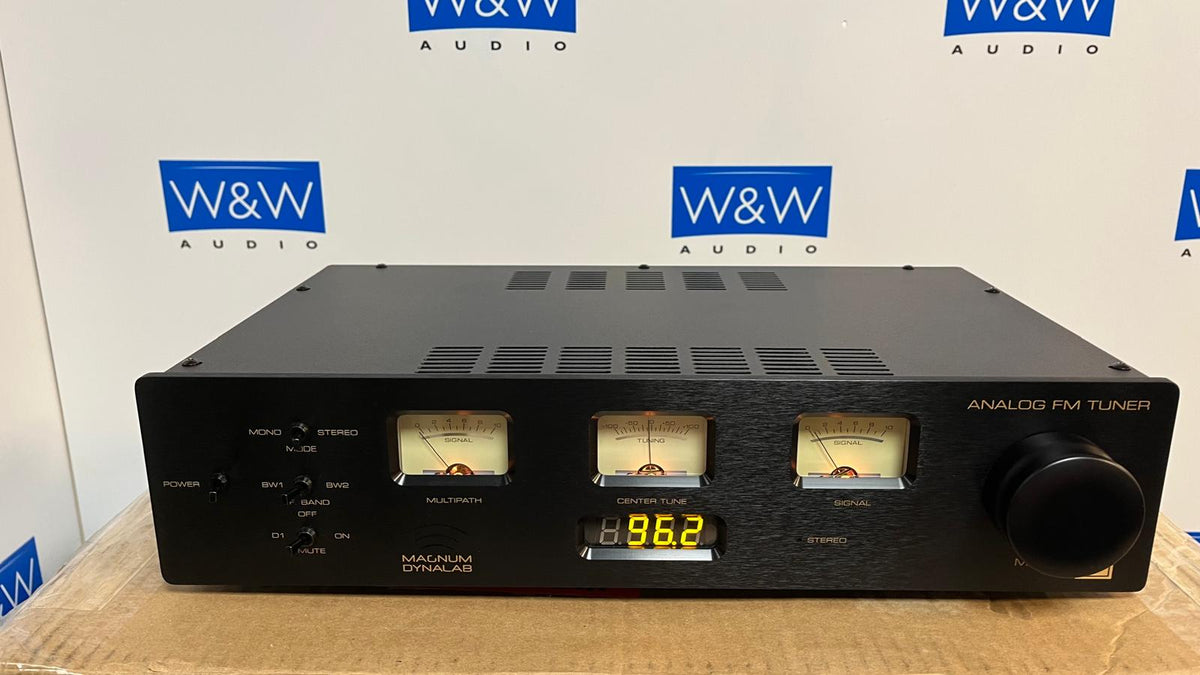

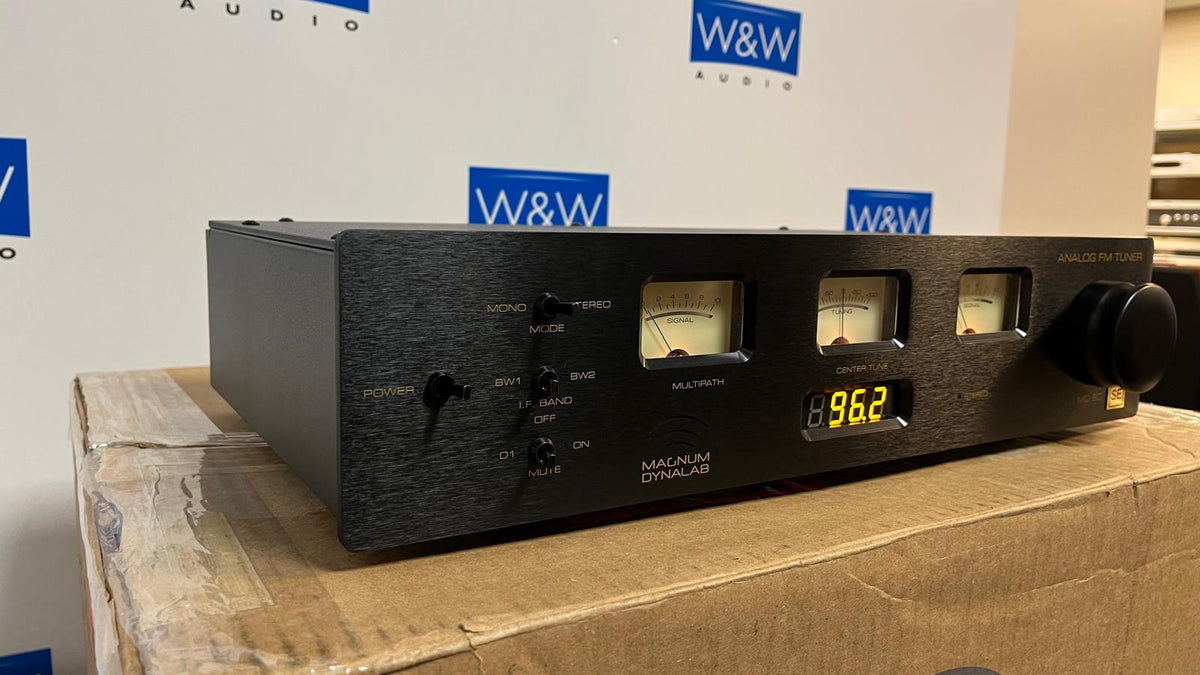

Magnum Dynalab MD-90 SE

Magnum Dynalab MD 90 SE Solid State Analog FM Tuner. Upgraded audio section with Solen polypropylene capacitors plus by-pass caps Brass flywheel and brass clutch precision tuning mechanism Balanced output

Outputs: XLR, RCA Optional DAC inputs: USB, Tos-Link, S/PDIF coax (custom combinations possible - max 3 inputs) Frequency response: 15 Hz to 17 KHz( +/-1 dB) Usable sensitivity- Mono 0.7 uV 9.0 dBf 50 dB quieting Mono 2.0 uV 9.9 dBf 50 dB quieting Stereo 2.3 uV 25.0 dBf Capture ratio - 1.5 dB Image rejection - 110.0 dB Signal to noise ratio - 80.0 dB Alternate channel Wide - 40.0 dB Alternate channel Narrow - 70.0 dB Adjacent channel Wide - 3.0 dB Adjacent channel Narrow - 35.0 dB THD Mono 0.10 % THD Stereo 0.18 % Stereo separation 50.0 dB AM suppression 70.0 dB SCA rejection 80.0 dB IF rejection 80.0 dB 19 KHz and 38 KHz component rejection 75.0 dB Audio frequency response (+/- 1 dB) 15 Hz - 17 KHz Balanced audio output (600 ohms) 2.2 V Line audio output (RCA) 1.0 V Line power (Must be specified) 110/220/230/240- VAC Dimensions (inches H.W.D.) 4 x 17.75 x 13 Dimensions (cm H.W.D.) 11.43 x 48.3 x 38.1 Weight (lbs./kgs) - 18/7.96 Power consumption (Typ/Max) - 50w/100w TUBE SPECIFICATIONS Filament current (max) 330 mA (min) 270 mA Anode current (1) (max) 1.07 mA (min) 0.92 mA Anode current (2) (max) 1.07 mA (min) 0.92 mA Total harmonic distortion < 1.8%
