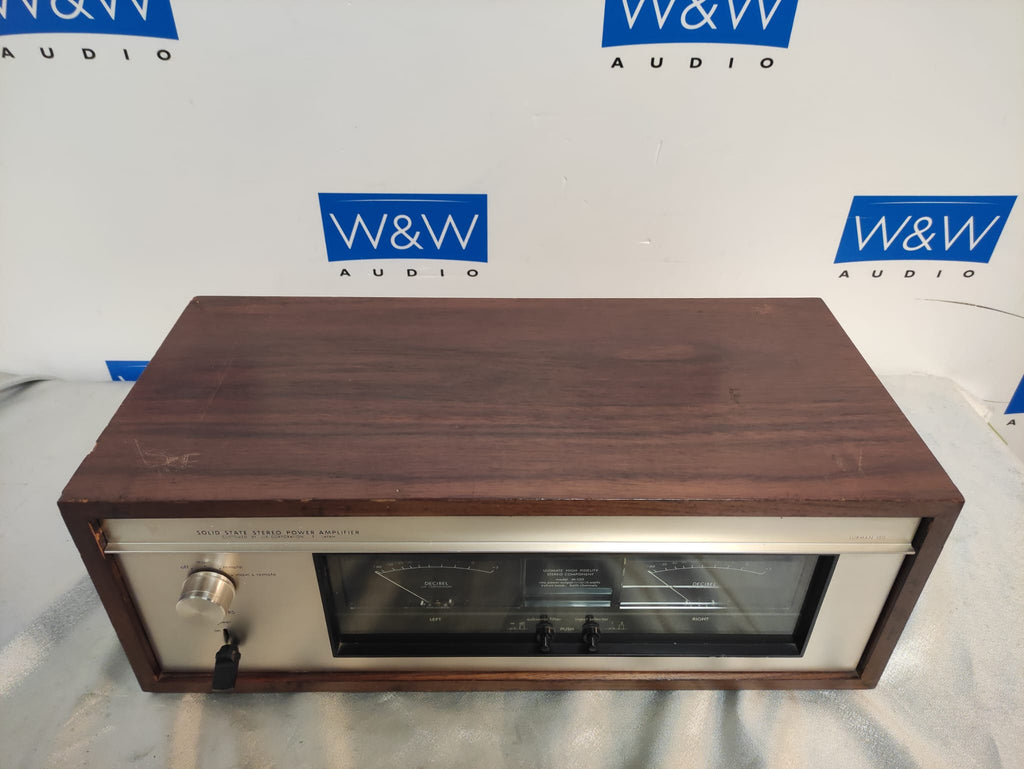

Luxman M-150

This is a Lux stereo power amplifier using transistors. A large-capacity power transistor is used in parallel for the output stage. Equipped with a peak detection type power meter. Equipped with a subsonic filter and input level set function.

Type Stereo power amplifier Continuous effective output 75W + 75W (8 ohm, both channel operation) 90W/90W (8 ohm, single-channel operation) Total harmonic distortion factor 0.03% or Less (8 ohm, 75W) Cross modulation distortion factor 0.03% or Less (8 ohm, 75W, 70 hz : 7 khz = 4 : 1) Output bandwidth 10 Hz to 50 kHz -3dB (0.1%) Frequency characteristic 7 Hz to 90 kHz -1dB Input Sensitivity / Impedance 680mV/250k ohm Residual noise 0.5 mV or less Attachment Peak detection meter circuit Subsonic filter Two system input terminal and input selector Input level set Two system terminals and speaker selector switches External dimensions Width 476x Height 182x Depth 244 mm Weight 15.5kg
