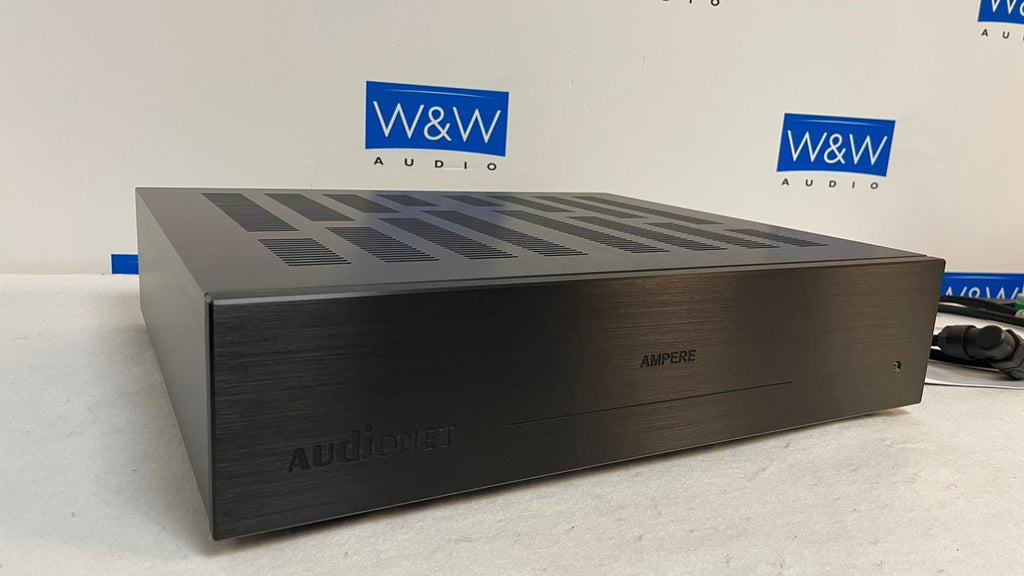

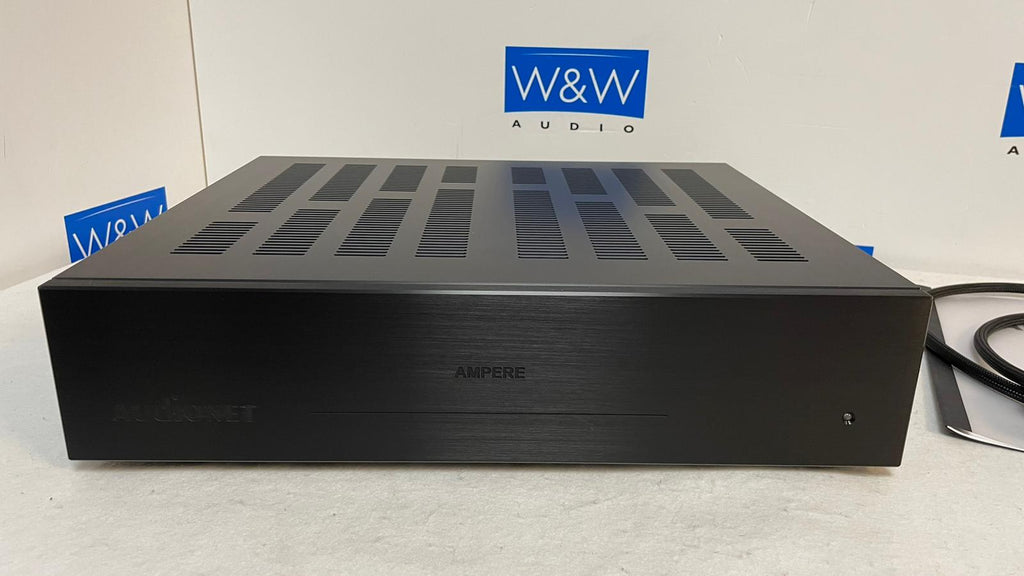

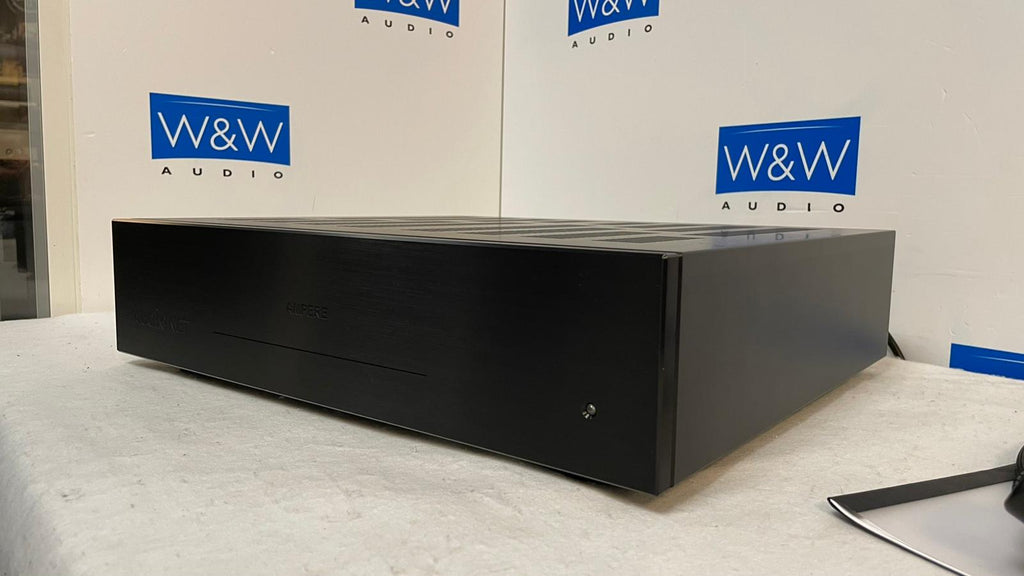

Audionet Ampere

What's the scientific progress in external power supply, Ask AMPERE. Providing you with hitherto unheard-of stability, calmness, spatiality and tonal pureness. AMPERE is what will make the decisive difference regarding the perfor-mance of all your devices in the future. Absolute load stable external power supply for the analog sections of Audionet CD player PLANCK. Massive aluminium body and resonance-optimized fixation with invisible screws. Fully separated, discrete circuitry for positive and negative voltage, each with its own low emitting toroid transformer. Control and stand-by circuitry with separate galvanically isolated power supply. Extreme low impedance, low noise and load inde-pendent voltage outputs. Two 300 VA toroid transformers with optimized winding design, encap-sulated and resonance optimized. Ultra fast recovery time Schottky diodes for rectification. Laboratory grade high precision und low noise voltage reference. Audio grade capacitors with silk dielec-tricum, total capacitance 576,000 uF. High precision voltage regulator with discrete MOSFETs. Circuitry layout for optimized current conduction. Double layer glass fibre rein-forced and resonance-minimized epoxy circuit board. Low impedance circuit layout with extra-thick copper layers. Internal wiring with gold-doped pure silver cables. Short-circuit proof and protected against overheating. Rhodium fuse.

Power supply: Two encapsulated 300 VA toroid transformer and 576,000 uF capacitance Circuitry: Reference voltage sources for positive and negative analog voltages using discrete Audionet voltage regulators (MOSFET) Output voltage: +/- 24.00 V for analog sections, +5 V for digital and control sections Stability: Deviation absolute: < 0.1 % of nominal value Deviation relative: < 0.01 % accuracy Noise: -144 dB or 1.5 uVRMS for 0 Hz up to 22 kHz Power consumption: < 0.5 W Stand by, max. 400 W Mains: 220..240 V or 110..120 V, 50..60 Hz Dimensions: Width 430 mm Height 110 mm Depth 360 mm Weight: 26 kg
