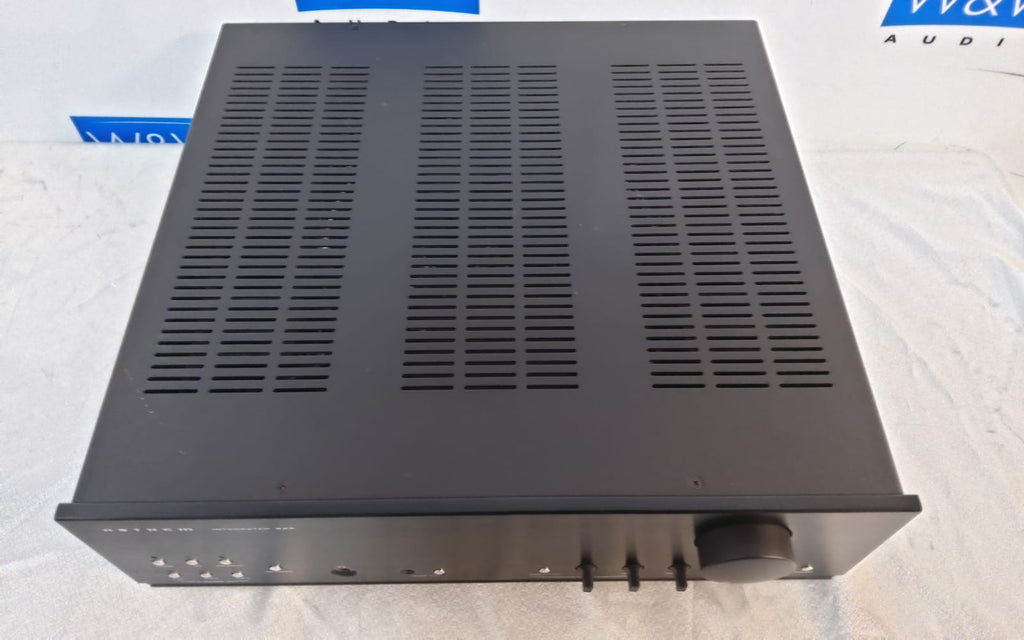

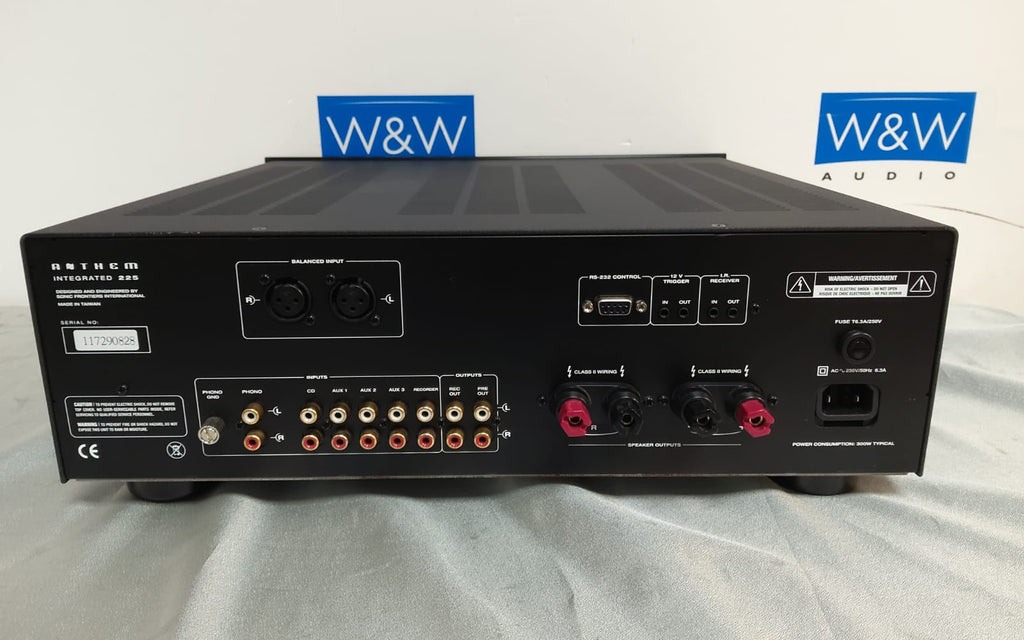

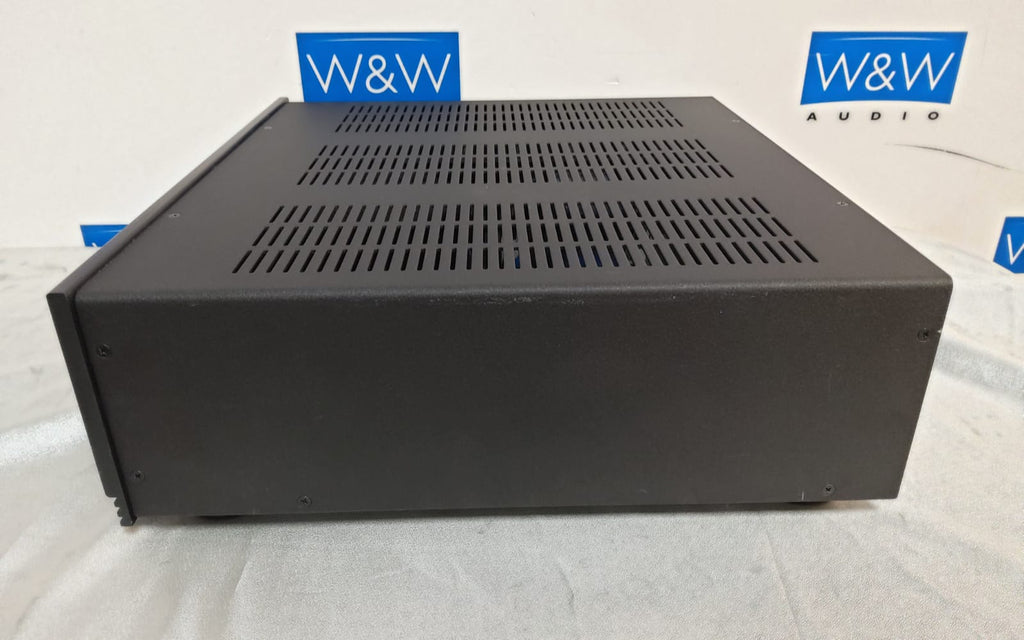

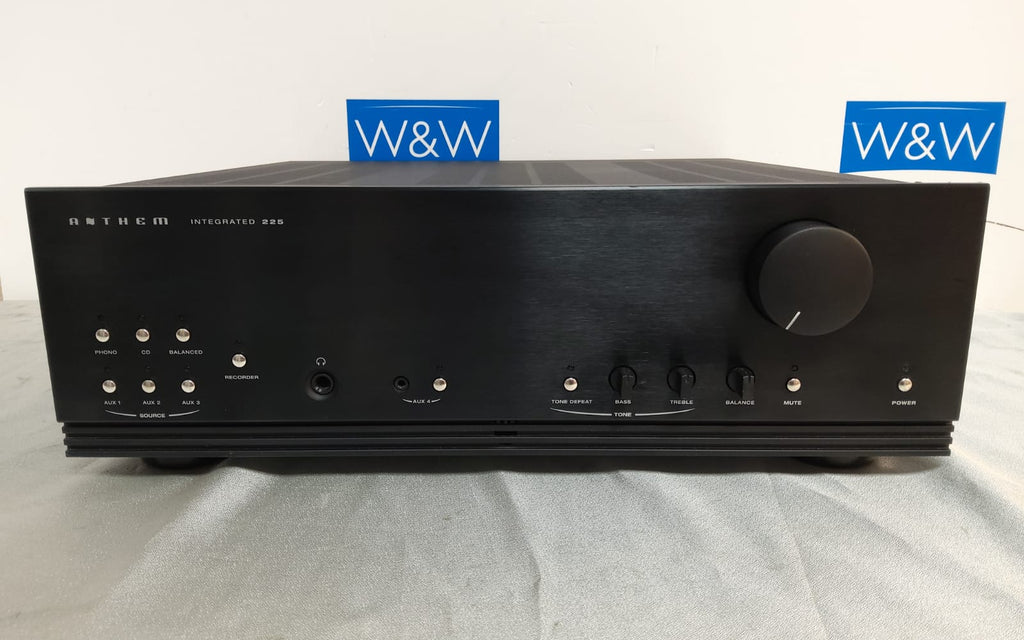

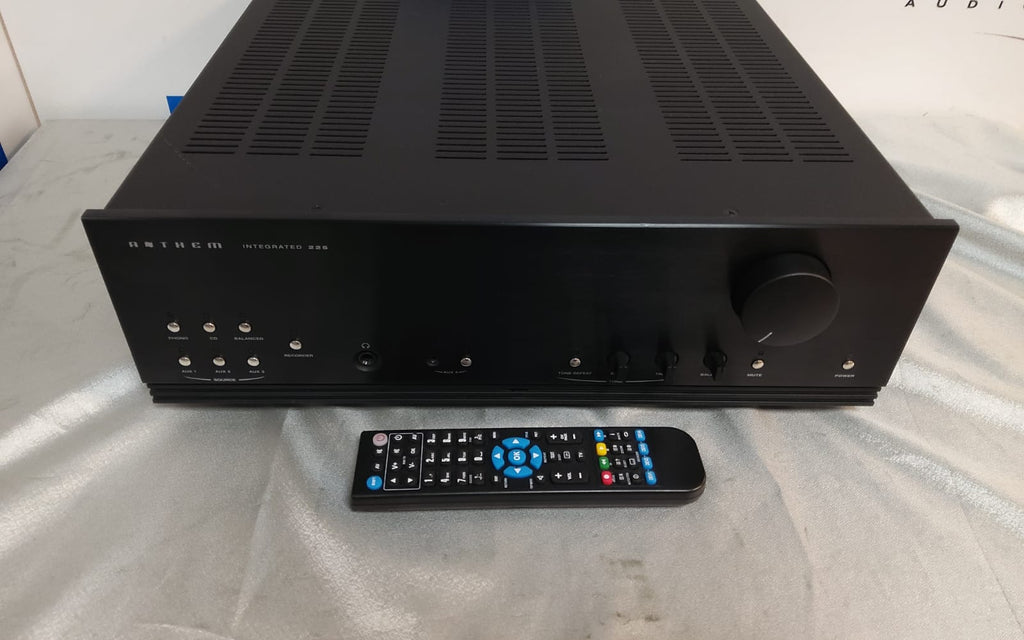

Anthem Integrated 225

Pure. Purer. Purist. Love music Still want to spin those vinyl LPs to hear all the great music you've collected. If you listen to music regularly and don't require the extra channels of a home theater receiver, put the Integrated 225 on your list of must haves. It's an all-in-one Anthem quality two-channel analog solution that offers the performance of high-powered separates, without the associated cost and complexity. The Integrated 225 is an amplifier/preamplifier boasting a high-quality built-in phono stage to accommodate Moving Magnet phono cartridges. As usual our keep-it-simple philosophy lies front and center. The Integrated 225 is sleek, its outlook minimalist. It doesn't call attention to itself in any overt way yet when it sits in the A/V rack, you can't help noticing just how good it looks. The inside story is similar: high-quality component parts; critical inputs are buffered to prevent crosstalk; a combination active/passive EQ technology in the phono stage unlocks all of the magic hidden in those vinyl grooves with a transparency, refinement and detail that should be far more expensive, but isnt.

PHONO PREAMPLIFIER The phono preamplifier is suitable for moving magnet and high-output moving coil cartrdiges Input Impedance 47 kohm Input Capacitance 100 pF Maximum Input 18 mV at 20 Hz, 140 mV at 1 kHz, 160mV at 20 kHz Gain (at 1 kHz) 35 dB Crosstalk (at 1 kHz) 80 dB RIAA Response +/- 0.5 dB (100 Hz to 20 kHz); -1 dB (20 Hz) THD+N (at 1 kHz, 5 mV input) 0.05% S/N Ratio (ref. 5 mV at 1 kHz, IEC-A filter) 83 dB PREAMPLIFIER Input Impedance 30 k ohm 'Pre-Out' Output Impedance 560 ohm 'Rec-Out' Output Impedance 100 ohm Rated Input 1.0 Vrms Maximum Input 7.6 Vrms Minimum Load 5 kohm Rated Output (100 k1 load) 1.0 Vrms Maximum Output (100 k1 load) 7.6 Vrms Headphone Output 500 mW into 32 ohm at 0.03% THD+N Channel Separation (at 1 kHz) 75 dB Crosstalk Between Inputs (at 1 kHz) 72 dB XLR Pin Configuration Pin 1: Ground; Pin 2: Positive; Pin 3: Negative Frequency Response and Bandwidth 20 Hz to 20 kHz (+0, -0.1 dB); 1 Hz to 170 kHz (+0, -3 dB) THD+N (at rated input and output, 80 kHz BW) 0.003% IMD (CCIF at 15 kHz and 16 kHz) 0.0005% S/N Ratio (A-weighted, ref 2.0 Vrms) 105 dB POWER AMPLIFIER (per channel, continuous RMS, 20 Hz to 20 kHz, <1.0% THD) Frequency Response 20 Hz to 20 kHz (+0, -0.15 dB) Bandwidth 1 Hz to 200 kHz (+0, -3 dB) THD+N 0.01% at 1 kHz, 0.03% at 20 kHz (100 W into 8 1) Power Bandwidth < 10 Hz to 100 kHz (+0, -3 dB, 200 W into 8 1) Slew Rate 25 V/us Headroom 1.4 dB (8 1), 2.8 dB (4 1) Damping Factor 80 at 1 kHz (ref. 8 1) S/N Ratio (A-weighted, ref 225 W) 105 dB Crosstalk > 57 dB (100 Hz to 10 kHz) Voltage Gain 29 dB CONTROL Infra Red Carrier Frequency 38 kHz Max. Emitter Current Pass-through of input Trigger Input Polarity Non-polarized Output Pass-through of input Dimensions Width 5-7/8 inches (14.9 cm) including feet Height Width 17-1/4 inches (43.8 cm) Depth 18 inches (45.7 cm) Weight (Unpacked) 42.6 lb (19.4 kg)
