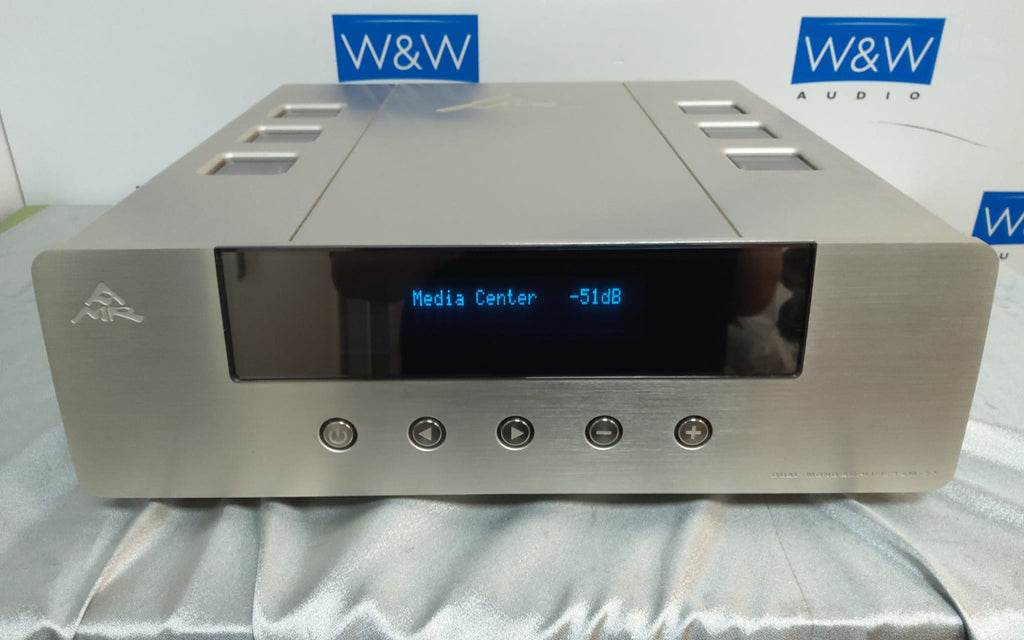

AMR AM 77

When you hear the first note of your favourite tunes with natural purity, it's a feeling you'll never forget. It's the feeling of the hairs on the back of your neck standing up. The feeling that your favourite bands are right there with you. This is the AMR AM-77. An amp's job is simple to enhance your enjoyment of music. However, many don't, making your audio sound unnatural and bleached. Not anymore. The AM-77 drives even the most difficult of loudspeakers and addresses poor sound by injecting: Speed, Rhythm, Life via a fusion of valve and solid-state tech, into every vocal and instrument, allowing you to enjoy live music every time. 180W Solid-State Power Buffer with unique error correction circuit Ultra Transparent OptiLevel Volume Control OptiGain Pure Class A all Valve Preamplifier Block Diagram for AMR's AM-77: Pre-Main Amplifier

Inputs 5 x RCA 1 x XLR Bal. shared with 1 RCA 1 X iPod shared with 1 RCA Volume Control 71dB - 0dB in 1dB steps + Mute Input Sensitivity (IHF 2.83V Out)/Impedance < 0.05V / >20KOhm Power Output (IHF Dynamic Power) 270 watts per channel at 8 ohm (FTC) 180 watts per channel at 8 ohm Output impedance 0.5 ohm, 20-20,000 Hz Frequency Response (-1dB) 10Hz - 50kHz Signal-to-noise ratio A-weighted >100dB Operational Modes Pre-Main amplifier mode Power amplifier mode Monoblock option Unlimited AM-77s may be synchronised Thermionic Electron Valves 5687/6900 (NOS) amplification stage Power Transformer 1200VA Custom Double C Core Power Supply Capacitance 108,000uF per Channel Dimensions 17.9in W by 6.2in H by 18.3in D, 46cm W by 16cm H by 47cm D Weight Amplifier 75lbs / 34kg,
